Product Summary

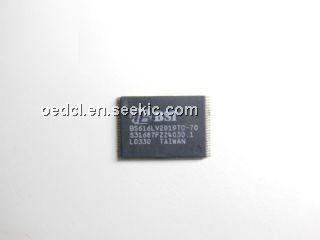

The BS616LV2019TC-70 is a high performance, very low power CMOS Static Random Access Memory organized as 131,072 words by 16 bits and operates from a range of 2.7V to 3.6V supply voltage. The BS616LV2019TC-70 has an automatic power down feature, reducing the power consumption significantly when chip is deselected. The BS616LV2019TC-70 is available in DICE form, JEDEC standard 48-pin TSOP Type I package and 48-ball BGA package.
Parametrics
BS616LV2019TC-70 absolute maximum ratings: (1)Terminal Voltage with Respect to GND: -0.5 to Vcc+0.5V; (2)Temperature Under Bias: -40 to +85°C; (3)Storage Temperature: -60 to +150°C; (4)Power Dissipation: 1.0 W; (5)DC Output Current: 20 mA.
Features
BS616LV2019TC-70 features: (1)Vcc operation voltage range : 2.7V ~ 3.6V; (2)Very low power consumption: Vcc = 3.0V C-grade: 23mA (@55ns)operating current; (3)I -grade: 25mA (@55ns)operating current; (4)C-grade: 15mA (@70ns)operating current; (5)I -grade: 16mA (@70ns)operating current; (6)0.3uA(Typ.)CMOS standby current; (7)High speed access time : -55 to 55ns, -70 to 70ns; (8)Automatic power down when chip is deselected; (9)Three state outputs and TTL compatible; (10)Fully static operation; (11)Data retention supply voltage as low as 1.5V.

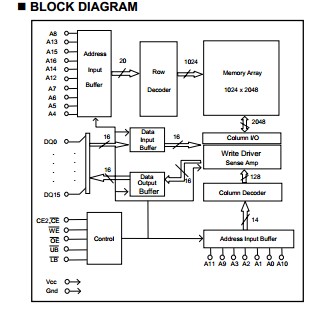

Diagrams
