Product Summary

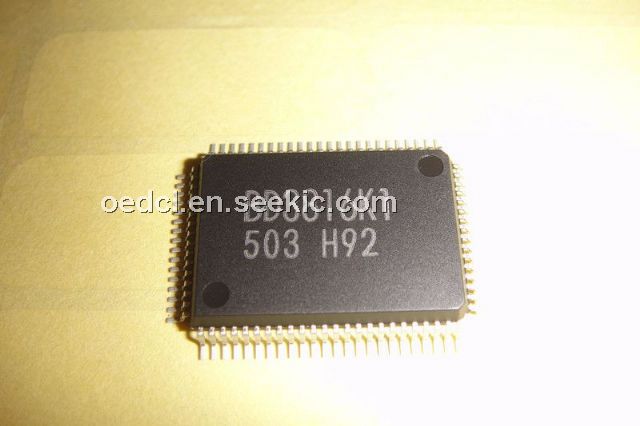

The bd3816k1 is a 6.1 sound processor.
Parametrics
bd3816k1 absolute maximum ratings: (1) power supply voltage VCC-VEE: 15V; (2) Input signal voltage VIN: VCC +0.3 to VEE -0.3V; (3) power dissipation Pd: 1200mW; (4) Operating temperature Topr: -20 to +75°C; (5) storage temperature Tastg: -55 to +125°C.
Features
bd3816k1 features: (1) dynamic range: 132dB (volume direct mode, VOL=Mute, IHF-A) ; (2) independent 7 channels for master volume (0 to -95dB, Mute 1dB/Step) ; (3) Low current consumption design achieved by adopting the Bi-CMOS process.

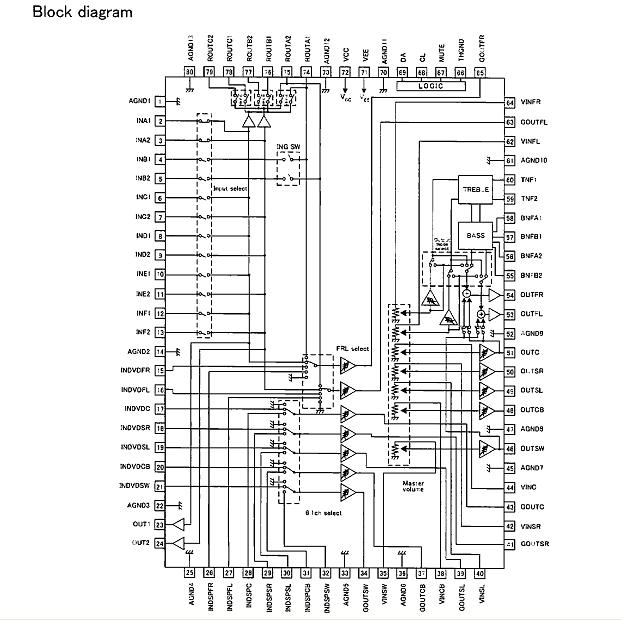

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BD3816K1 |
ROHM Semiconductor |
Audio Amplifiers SOUND PROCESSOR 6.1 |
Data Sheet |
|
|
||||||
