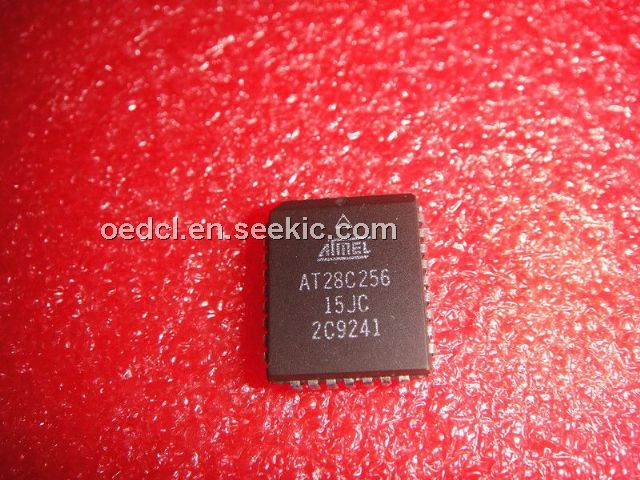

AT28C256-15JC

AT28C256-15JC, read only memory, 6.25 V, 200 mA, 150 ns, PLCC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.70~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.00 / Piece
20 ~ 100 :	1.70 / Piece

PartNumber:: AT28C256-15JC

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-15

From Other Seller

Part Number:AT28C256-15JC
US $1.70 - 2.00
Quantity:

piece

Product Summary

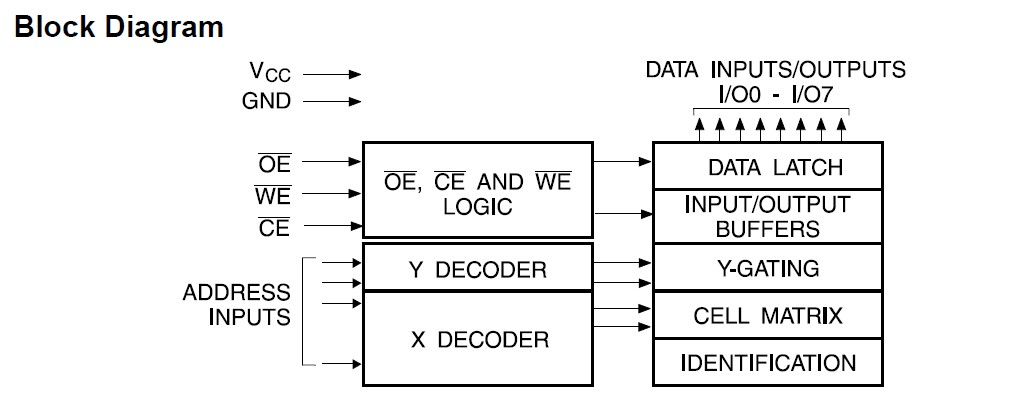

The AT28C256-15JC is a high-performance electrically erasable and programmable read only memory. The AT28C256-15JC is 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS technology, the AT28C256-15JC offers access times to 150 ns with power dissipation of just 440 mW. When the device is deselected, the CMOS standby current is less than 200 mA. The AT28C256-15JC is accessed like a Static RAM for the read or write cycle without the need for external components. The device contains a 64-byte page register to allow writing of up to 64-bytes simultaneously.

Parametrics

AT28C256-15JC absolute maximum ratings: (1)Temperature under bias: -55°C to +125°C; (2)Storage temperature: -65°C to +150°C; (3)All input voltages (including NC Pins)with respect to ground: -0.6V to +6.25V; (4)All output voltages with respect to ground: -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with respect to ground: -0.6V to +13.5V.

Features

AT28C256-15JC features: (1)Fast read access time - 150 ns; (2)Automatic page write operation: Internal address and data latches for 64-bytes; Internal control timer; (3)Fast write cycle times page write cycle time: 3 ms or 10 ms maximum 1 to 64-byte page write operation; (4)Low power dissipation: 50 ma active current; 200 mA CMOS standby current; (5)Hardware and software data protection; (6)DATA polling for end of write detection; (7)High reliability CMOS technology endurance: 104 or 105 cycles; Data retention: 10 Years; (8)Single 5V ± 10% supply; (9)CMOS and TTL compatible inputs and outputs; (10)JEDEC approved byte-wide pinout; (11)Full military, commercial, and industrial temperature ranges.
