Product Summary

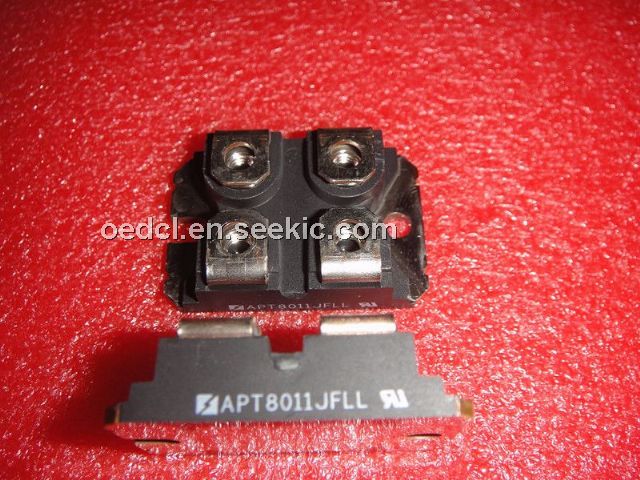

The APT8011JFLL is a new generation of low loss, high voltage, N-Channel enhancement mode power MOSFET. Both conduction and switching losses are addressed with APT8011JFLL by significantly lowering RDS(ON) and Qg. The APT8011JFLL combines lower conduction and switching losses along with exceptionally fast switching speeds inherent with APTs patented metal gate structure.

Parametrics

APT8011JFLL absolute maximum ratings: (1)Drain-source voltage: 800 Volts; (2)Continuous drain current @ TC = 25°C: 51 Amps; (3)Pulsed drain current 1: 204 Amps; (4)Gate-source voltage continuous: ±30 Volts; (5)Gate-source voltage transient: ±40 Volts; (6)Total power dissipation @ TC = 25°C: 690 Watts; (7)Linear derating factor: 5.52 W/°C; (8)Operating and storage junction temperature range: -55 to 150 °C; (9)Lead temperature: 0.063" from case for 10 sec: 300 °C; (10)Avalanche current 1 (repetitive and Non-repetitive): 51 Amps; (11)Repetitive avalanche energy 1: 50 mJ; (12)Single pulse avalanche energy 4: 3600 mJ.

Features

APT8011JFLL features: (1)Lower input capacitance; (2)Increased power dissipation; (3)Lower miller capacitance; (4)Easier to drive; (5)Lower gate charge, Qg; (6)Popular SOT-227 package.

Diagrams

APT8011JFLL pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
APT8011JFLL
APT8011JFLL

MOSFET N-CH 800V 51A SOT-227
Data Sheet
0-1: $47.25
1-10: $44.39
10-100: $40.09
100-250: $38.09
250-500: $36.89
500-1000: $35.37
1000-2500: $34.74
2500-5000: $34.37
