Product Summary

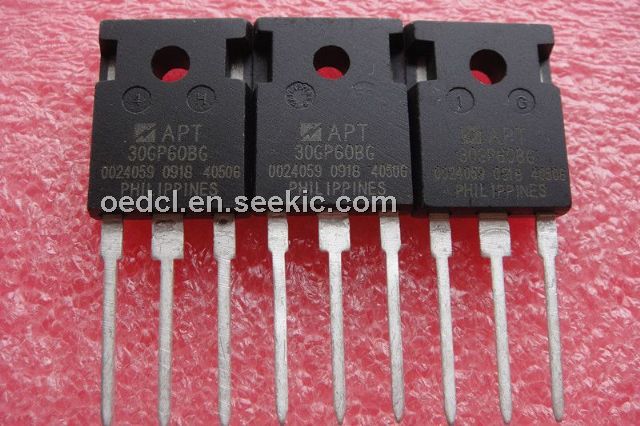

The APT30GP60BG is a power MOS 7 IGBT. A new generation of high voltage power IGBTs. Using punch-through technology and a proprietary metal gate, this IGBT has been optimized for very fast switching, making it ideal for high frequency, high voltage switch mode power supplies and tail current sensitive applications. In many cases, the POWER MOS 7® IGBT provides a lower cost alternative to a Power MOSFET.

Parametrics

APT30GP60BG absolute maximum ratings: (1)Collector-Emitter Voltage: 600V; (2)Gate-Emitter Voltage: ±20V; (3)Gate-Emitter Voltage Transient: ±30V; (4)Continuous Collector Current @ TC = 25℃: 100A; (5)Continuous Collector Current @ TC = 110℃: 49A; (6)Pulsed Collector Current 1 @ TC = 25℃: 120A; (7)Switching Safe Operating Area @ TJ = 150℃: 120A@600V; (8)Total Power Dissipation: 463W; (9)Operating and Storage Junction Temperature Range: -55 to 150℃; (10)Max. Lead Temp. for Soldering: 0.063" from Case for 10 Sec: 300℃.

Features

APT30GP60BG features: (1)Low Conduction Loss ; (2)100 kHz operation @ 400V, 37A; (3)Low Gate Charge ; (4)200 kHz operation @ 400V, 24A; (5)Ultrafast Tail Current shutoff ; (6)SSOA rated.

Diagrams

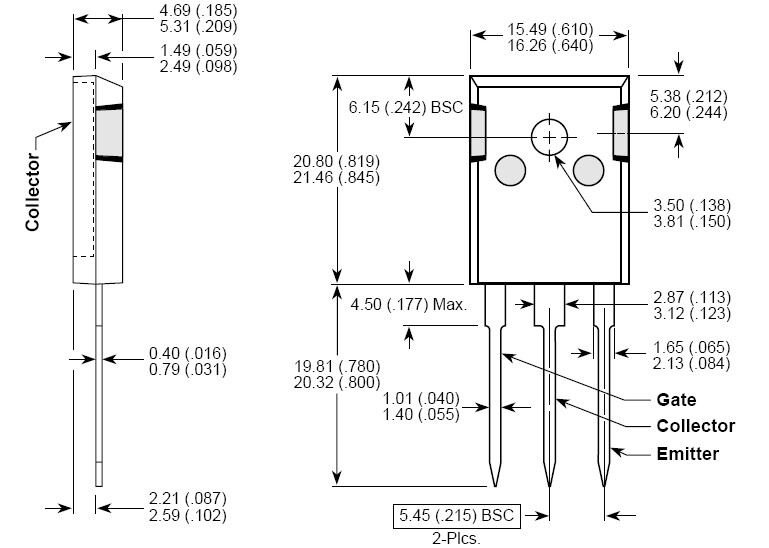

APT30GP60BG dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
APT30GP60BG
APT30GP60BG

IGBT 600V 100A 463W TO247
Data Sheet
0-1: $6.16
1-10: $5.55
10-100: $4.56
100-250: $4.19
250-500: $3.82
500-1000: $3.33
1000-2500: $3.21
2500-5000: $3.08
5000-10000: $3.02
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
APT30DQ60BG
APT30DQ60BG

IC DIODE UFAST 30A 600V TO-247
Data Sheet
0-1: $1.75
1-10: $1.57
10-100: $1.27
100-250: $1.12
250-500: $0.98
500-1000: $0.82
1000-2500: $0.76
2500-5000: $0.73
5000-10000: $0.70
APT30DQ60KG
APT30DQ60KG

DIODE ULT FAST 30A 600V TO-220
Data Sheet
0-1: $1.22
1-10: $1.11
10-25: $0.99
25-100: $0.89
100-250: $0.79
250-500: $0.69
500-1000: $0.57
1000-2500: $0.53
2500-5000: $0.51
APT30DQ120BG
APT30DQ120BG

DIODE ULT FAST 30A 1200V TO-247
Data Sheet
0-1: $2.33
1-10: $2.09
10-100: $1.71
100-250: $1.54
250-500: $1.38
500-1000: $1.17
1000-2500: $1.11
2500-5000: $1.06
5000-10000: $1.03
APT30GN60BDQ2G
APT30GN60BDQ2G

IGBT 600V 63A 203W TO247
Data Sheet
0-1: $3.88
1-10: $3.46
10-100: $2.84
100-250: $2.56
250-500: $2.30
500-1000: $1.94
1000-2500: $1.84
2500-5000: $1.77
5000-10000: $1.72
APT30GN60BG
APT30GN60BG

IGBT 600V 63A 203W TO247
Data Sheet
0-1: $2.94
1-10: $2.63
10-100: $2.15
100-250: $1.94
250-500: $1.74
500-1000: $1.47
1000-2500: $1.40
2500-5000: $1.34
5000-10000: $1.30
APT30GP60BDQ1G
APT30GP60BDQ1G

IGBT 600V 100A 463W TO247
Data Sheet
0-1: $6.74
1-10: $6.06
10-100: $4.98
100-250: $4.58
250-500: $4.18
500-1000: $3.64
1000-2500: $3.50
2500-5000: $3.37
5000-10000: $3.30
