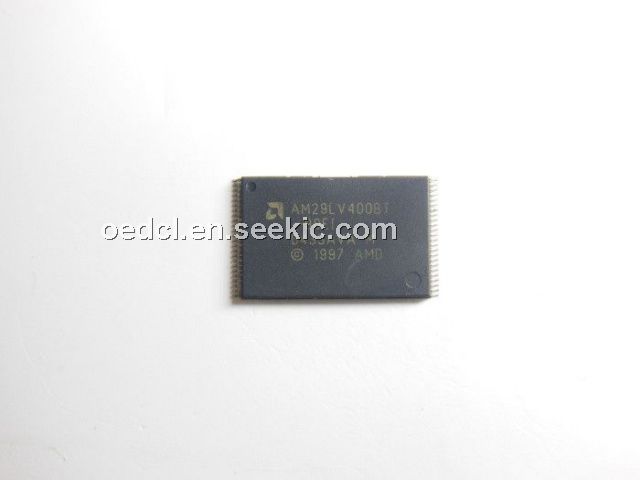

Product Summary
The AM29LV400-90EI is a 4 Mbit, 3.0 volt-only Flash memory organized as 524,288 bytes or 262,144 words. The word-wide data (x16) appears on DQ15-DQ0; the byte-wide (x8) data appears on DQ7-DQ0. The AM29LV400-90EI requires only a single 3.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations. The AM29LV400-90EI is entirely command set compatible with the JEDEC single-power-supply Flash standard.
Parametrics
AM29LV400-90EI operation conditions: (1)VCC (Supply Voltage):2.7 V to 3.6 V; (2)Operating Temperature: Commercial:0℃ to +70℃, Industrial:–40℃ to +85℃, Extended:–55℃ to +125℃.
Features
AM29LV400-90EI features: (1)Single power supply operation: 2.7 to 3.6 V for read, program, and erase operations, Ideal for battery-powered applications; (2)Manufactured on 0.32 μm process technology; (3)High performance: 60R, 70, 80, 90, or 120 ns access time; (4)Low power consumption (typical values at 5MHz); (5)200 nA Automatic Sleep mode current; (6)200 nA standby mode current; (7)7 mA read current; (8)15 mA program/erase current; (9)One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and seven 64 Kbyte sectors (byte mode); (10)One 8 Kword, two 4 Kword, one 16 Kword, and seven 32 Kword sectors (word mode); (11)Supports full chip erase; (12)Unlock Bypass Program Command; (13)Top or bottom boot block configurations available; (14)Minimum 1,000,000 write cycle guarantee per sector; (15)Compatibility with JEDEC standards; (16)Data# Polling and toggle bits: Provides a software method of detecting program or erase operation completion; (17)Ready/Busy# pin (RY/BY#); (18)Erase Suspend/Erase Resume ; (19)Hardware reset pin (RESET#); (20)20-year data retention at 125℃; (21)Tested to datasheet specifications at temperature; (22)Quality and reliability levels equivalent to standard packaged components.

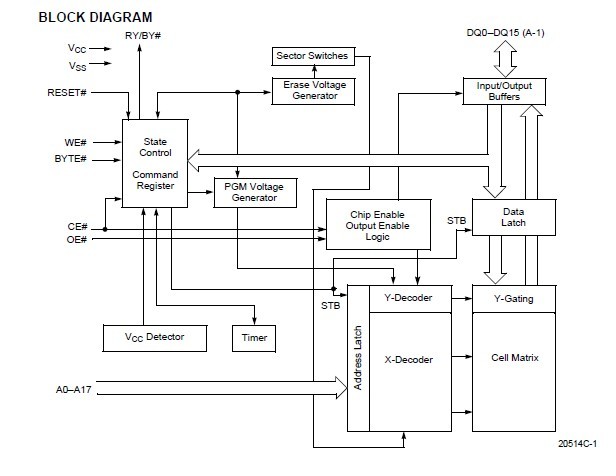

Diagrams
