Product Summary

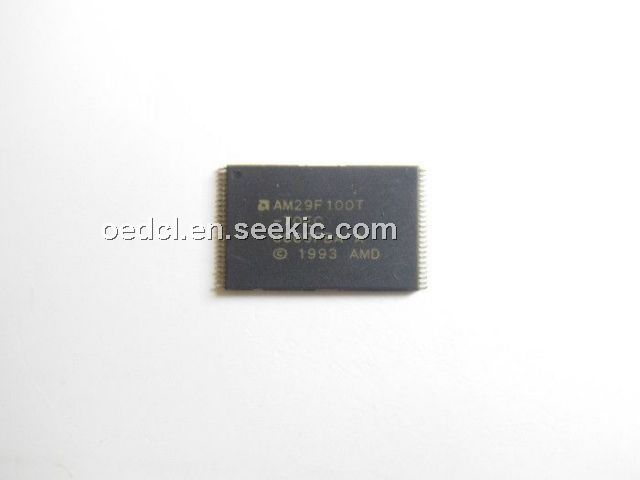

The am29f100t-70ec is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes or 65,536 words. The am29f100t-70ec is offered in 44-pin SO and 48-pin TSOP packages. The am29f100t-70ec is designed to be programmed in-system with the standard system 5 Volt Vcc supply. The am29f100t-70ec is entirely command set compatible with the JEDEC single-power-supply Flash standard.

Parametrics

am29f100t-70ec absolute maximum ratings: (1) Storage Temperature Plastic Packages: -65 to +125°C; (2) Ambient Temperature with Power Applied: -55 to +125°C; (3) Voltage with Respect to Ground Vcc: -2 to +7V, A9: -2 to +13.5V; (4) All other pins: -2 to +7V; (5) Output Short Circuit Current: 200mA.

Features

am29f100t-70ec features: (1) Single power supply operation; (2) High performance; (3) Low power consumption; (4) Flexible sector architecture; (5) Top or bottom boot block configurations available; (6) Sector protection; (7) Embedded Algorithms; (8) Minimum 100,000 program/erase cycles guaranteed; (9) Compatible with JEDEC standards; (10) Erase Suspend/Erase Resume.

Diagrams

am29f100t-70ec block diagram
