AD7542AD

precision 12-bit CMOS multiplying DAC, 7V, 40mW, CDIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $16.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $16.00~20.00

PartNumber:: AD7542AD

Brand:: Analog Devices - ADI | Pack: CDIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Pamela's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-24

From Other Seller

Part Number:AD7542AD
US $16.00 - 20.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

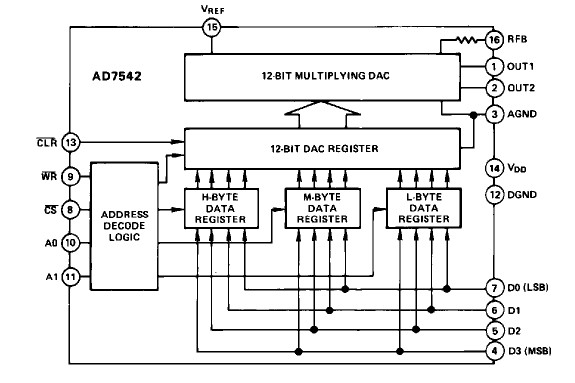

The AD7542AD is a precision 12-bit CMOS multiplying DAC designed for direct interface to 4- or 8-bit microprocessors. The functional diagram shows the AD7542AD to consist of three 4-bit data registers, a 12-bit DAC register, address decoding logic and a 12-bit CMOS multiplying DAC. Data is loaded into the data registers in three 4-bit bytes, and subsequendy transferred to the 12-bit DAC register. All data loading or data transfer operations are identical to the WRITE cycle of a static RAM. A clear input allows the DAC register to be easily reset to all zeros when powering up the device.

Parametrics

AD7542AD absolute maximum ratings: (1)Vdd to AGND: OV, +7V; (2)VDD to DGND: 0V, +7V; (3)AGND to DGND: VDD +0.3V; (4)DGND to AGND: VDD +0.3V; (5)Digital Input Voltage to GND: -0.3V, VDD +0.3V; (6)Vouti> Vqut2 to AGND: -0.3V, VDD +0.3V; (7)Vrbf to AGND: + 25V; (8)Vrfb to AGND: + 25 V; (9)Operating Temperature Range Commercial (J, K, GK Versions): -40℃ to +85℃; (10)Operating Temperature Industrial (A, B, GB Versions): -40℃ to +85℃; (11)Operating Temperature Extended (S, T, GT Versions): - 55℃ to + 125℃; (12)Storage Temperature: -65℃ to + 150℃; (13)Lead Temperature (Soldering, lOsecs): 300℃.

Features

AD7542AD features: (1)Nonlinearity: ± 1/2LSB Tmin to Tmax; (2)Low Gain Drift: 2ppm/℃ typ, 5ppm/℃ max; (3)Microprocessor Compatible; (4)Full 4-Quadrant Multiplication; (5)Fast Interface Timing; (6)Low Power Dissipation: 40mW max; (7)Low Cost; (8)Small Size: 16-pin DIP and 20-Terminal Surface Mount Package Latch Free (Protection Schottky Not Required).
