Product Summary

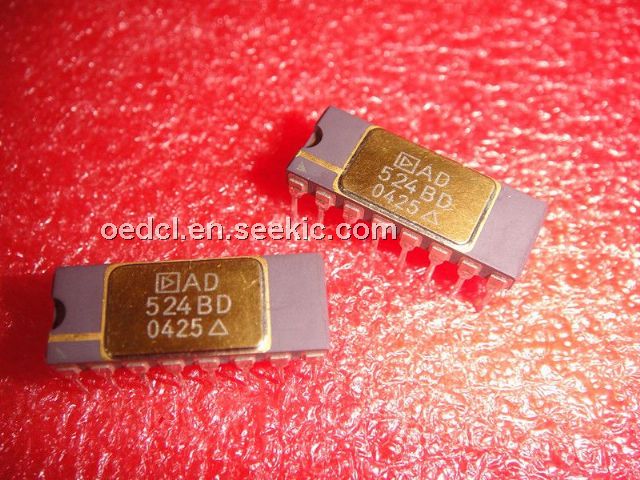

The AD524BD is a precision monolithic instrumentation amplifier designed for data acquisition applications requiring high accuracy under worst-case operating conditions. An outstanding combination of high linearity, high common mode rejection, low offset voltage drift and low noise makes the AD524BD suitable for use in many data acquisition systems. As a complete amplifier the AD524BD does not require any external components for fixed gains of 1, 10, 100 and 1000. For other gain settings between 1 and 1000 only a single resistor is required. The AD524BD input is fully protected for both power-on and power-off fault conditions.
Parametrics
AD524BD absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: 450 mW; (3)Storage Temperature Range (R): -65℃ to +125℃; (4)Storage Temperature Range (D, E): -65℃ to +150℃; (5)Operating Temperature Range: -25℃ to +85℃; (6)Lead Temperature (Soldering 60 secs): +300℃.
Features
AD524BD features: (1)Low Noise: 0.3 mV p-p 0.1 Hz to 10 Hz; (2)Low Nonlinearity: 0.003% (G = 1); (3)High CMRR: 120 dB (G = 1000); (4)Low Offset Voltage: 50 mV; (5)Low Offset Voltage Drift: 0.5 mV/8C; (6)Gain Bandwidth Product: 25 MHz; (7)Pin Programmable Gains of 1, 10, 100, 1000; (8)Input Protection, Power On–Power Off; (9)No External Components Required; (10)Internally Compensated; (11)MIL-STD-883B and Chips Available.

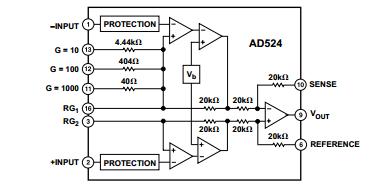

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD524BD |
|
IC AMP INST 1MHZ PREC LN 16CDIP |
Data Sheet |
|
|
||||||||||||||
|
AD524BDZ |
|
IC AMP INST 1MHZ PREC LN 16CDIP |
Data Sheet |
|
|
||||||||||||||
