Product Summary

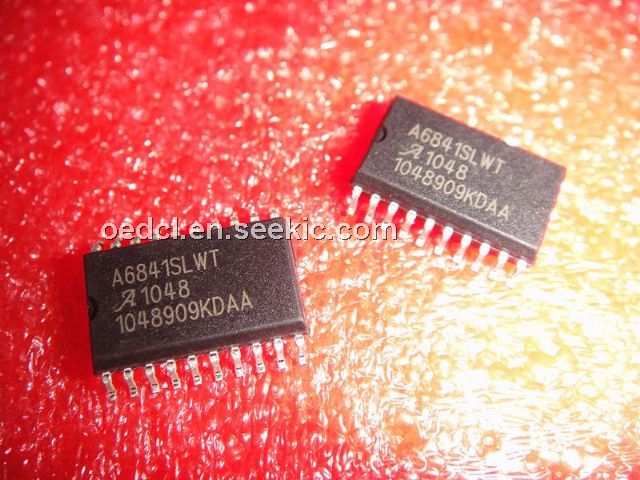

The a6841slwt is a DABiC-5 8-bit serial input latched sink driver. The merging of low-power CMOS logic and bipolar output power drivers permit the a6841slwt integrated circuits to be used in a wide variety of peripheral power driver applications. Applications of the a6841slwt include: relays, solenoids, inductive loads.

Parametrics

a6841slwt absolute maximum ratings: (1) Output Voltage VCE: 50V, VCE (SUS) (for inductiove load applications) : 35V; (3) Logic Supply Voltage, VDD: 7V; (4) Emitter Supply Voltage, VEE: -20V; (5) Input Voltage Range, VIN: -0.3 to VDD +0.3V; (6) Continuous Output Current (each output), IOUT: 500mA; (7) Operating Temperature Range, Ambient Temperature, TA: -20 to +85°C, Storage Temperature, TS: -55 to +150°C.

Features

a6841slwt features: (1) 3.3 V to 5 V logic supply range; (2) Power on reset (POR) ; (3) To 10 MHz data input rate; (4) CMOS, TTL compatible inputs; (5) -40°C operation available; (5) Low-power CMOS logic and latches; (6) Schmitt trigger inputs for improved noise immunity; (7) High-voltage current-sink outputs; (8) Internal pull-up/pull down resistors; (9) Output transient-protection diodes; (10) Single or split supply operation.

Diagrams

a6841slwt pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A6841SLWTR-20-T
A6841SLWTR-20-T

IC SINK DRIVER 8BIT LATCH 20SOIC
Data Sheet
Negotiable
A6841SLWTR-T
A6841SLWTR-T

IC SINK DRIVER 8BIT LATCH 18SOIC
Data Sheet
Negotiable
