Product Summary

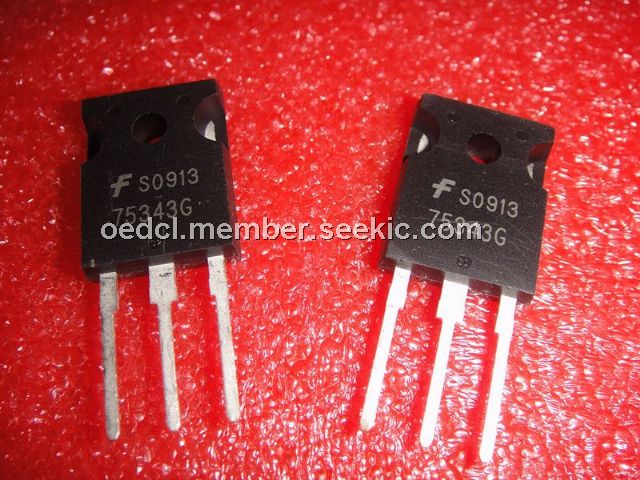

The 75343G is an ultra FET power MOSFET.

Parametrics

75343G absolute maximum ratings: (1)drain to source voltage: 55V; (2)Drain to gate voltage: 55V; (3)gate to source voltage: ±20V; (4)drain current: 75A; (5)power dissipation: 270W; (6)operating storage temperature: -55 to 175℃.

Features

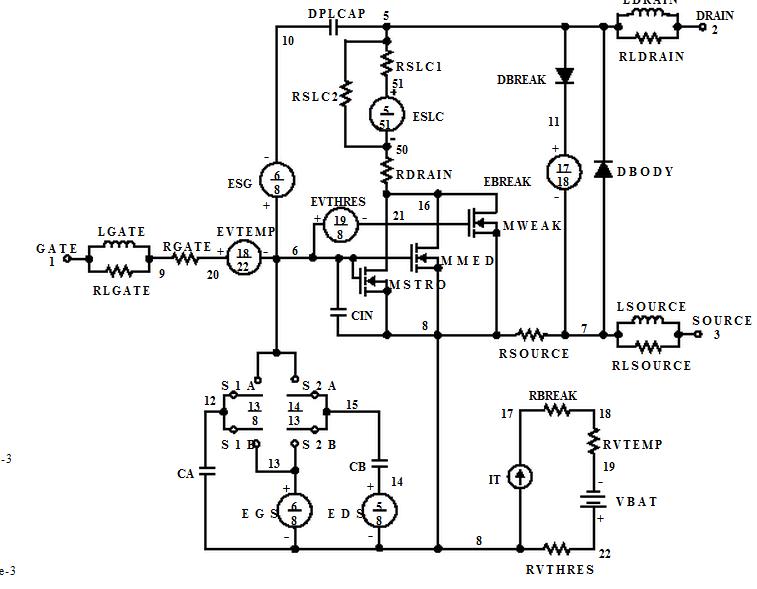

75343G features: (1)simulation models; (2)peak current vs pulse width curve; (3)uis rating curve; (4)related literature.

Diagrams

75343G dimensions

7534
7534
