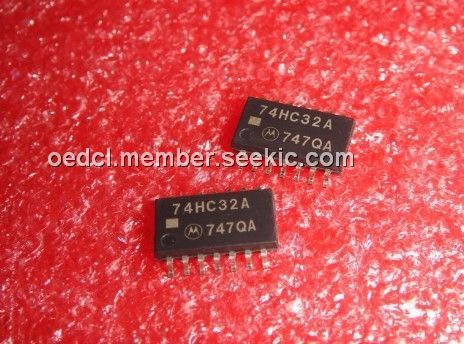

Product Summary

The 74HC32A quad 2-input or gate, which is identical in pinout to the LS32. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

Parametrics

74HC32A maximum ratings: (1)VCC, DC Supply Voltage: –0.5 to + 7.0 v ; (2)Vin, DC Input Voltage: –0.5 to + 7.0 V ; (3)Vout, DC Output Voltage: –0.5 to VCC + 0.5 v; (4)Iin, DC Input Current ,per Pin: –20 mA ; (5)Iout, DC Output Current, per Pin: ±25 mA ; (6)Icc, DC Supply Current, VCC and GND Pins: ±50 mA ; (7)PD, Power Dissipation in Still Air: Plastic DIP: 750 mw; SOIC Package: 500 mw; TSSOP Package: 450 mw; (8)Tstg, Storage Temperature: –65 to + 150 ℃ ; (9)TL, Lead Temperature,1 mm from Case for 10 seconds Plastic DIP,SOIC or Tssop Package: 260 ℃.

Features

74HC32A features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1A; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With the JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 48 FETs or 12 Equivalent Gates; (8)Pb-Free Packages are Available.

Diagrams

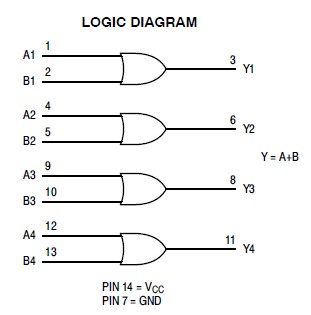

74HC32A circuit diagram
