Product Summary
The 74ACT245 is a octal bus transceiver. The 74ACT245 is designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. When the output-enable (OE) is low, the 74ACT245 passes noninverted data from the A bus to the B bus or from the B bus to the A bus, depending upon the logic level at the direction-control (DIR) input. A high on OE disables the device so that the buses are effectively isolated. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Parametrics
74ACT245 absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI: –0.5 V to VCC + 0.5 V; (3)Output voltage range, VO: –0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±50 mA; (7)Continuous current through VCC or GND: ±200 mA; (8)Package thermal impedance, θJA DB package: 70℃/W, DW package: 58℃/W, N package: 69℃/W, NS package: 60℃/W, PW package: 83℃/W; (9)Storage temperature range, Tstg: –65℃ to 150℃.
Features
74ACT245 features: (1)4.5-V to 5.5-V VCC Operation; (2)Inputs Accept Voltages to 5.5 V; (3)Max tpd of 8 ns at 5 V; (4)Inputs Are TTL-Voltage Compatible.

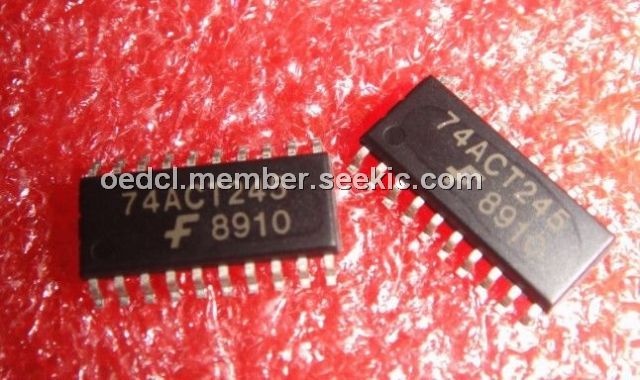

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74ACT245B |
STMicroelectronics |
Bus Transceivers Octal Bus Tranceiver |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74ACT245M |
STMicroelectronics |
Bus Transceivers RO 511-74ACT245M-TR |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74ACT245MSA_Q |
Fairchild Semiconductor |
Bus Transceivers Octal Bidir Trans |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74ACT245MTC |
Fairchild Semiconductor |
Bus Transceivers Octal Bidir Trans |
Data Sheet |
|
|
||||||||||||
|
74ACT245MTCX |
Fairchild Semiconductor |
Bus Transceivers Octal Bidir Trans |
Data Sheet |
|
|
||||||||||||
 |
74ACT245PC_Q |
Fairchild Semiconductor |
Bus Transceivers Octal Bidir Trans |
Data Sheet |
Negotiable |
|
||||||||||||
|
74ACT245SC |
Fairchild Semiconductor |
Bus Transceivers Octal Bidir Trans |
Data Sheet |
|
|
||||||||||||
|
74ACT245SCX |
Fairchild Semiconductor |
Bus Transceivers Octal Bidir Trans |
Data Sheet |
|
|
||||||||||||
