Product Summary

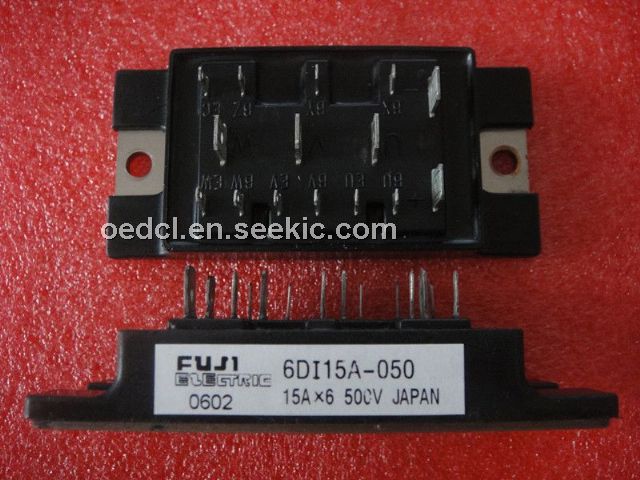

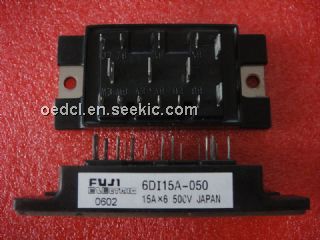

The 6di15a-050 is a power transistor module. Applications of the 6di15a-050 include: AC motor controls and uninterruptible power supply.

Parametrics

6di15a-050 absolute maximum ratings: (1) VCBO: 600V; (2) VCEO: 600V; (3) VCEO (SUS) : 450V; (4) IC: 15A (DC) ; (5) Icp: 30A (1ms) ; (6) IB (DC) : 2A; (7) Pc: 80W; (8) Tj: +150°C; (9) Tstg: -40 to +125°C; (10) Viso: 2500V.

Features

6di15a-050 features: (1) including free wheeling diode; (2) high DC current gain; (3) insulated type.

Diagrams

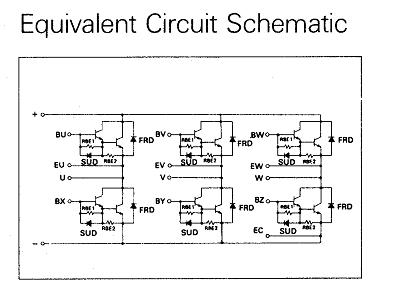

6di15a-050 equivalent circuit
