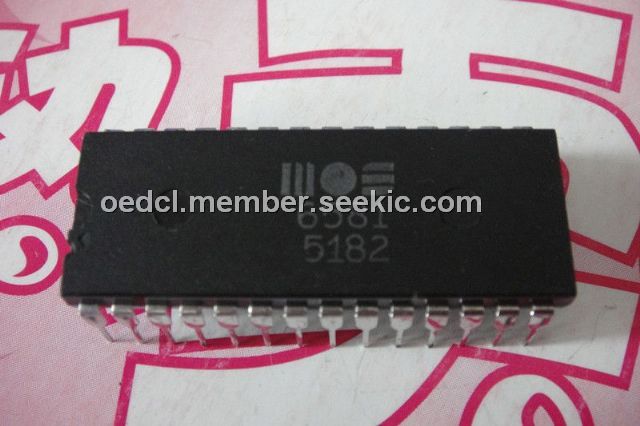

Product Summary

The 6581 is a sound interface device. It is a single-chip, 3-voice electronic music synthesizer/sound effects generator compatible with the 65xx and similar microprocessor families. The 6581 provides wide-range, high resolution control of pitch, tone color and dynamics. Specialized control circuity minimizes software overhead, facilitating use in arcade/home video games and low cost musical instruments.

Parametrics

6581 absolute maximum ratings: (1)supply voltage, Vdd: -0.3VDC to 14 VDC; (2)supply votlage, VCC: -0.3VDC to 7VDC; (3)input voltage (analog), Vina: -0.3 VDC to 10VDC; (4)input voltage (digital), Vind: -0.3 VDC to 7VDC; (5)operating temperature, Ta: 0 to 70℃; (6)storage temperature, Tstg: -55 to 150℃.

Features

6581 features: (1)3 tone oscillators range: 0 to 4kHz; (2)4 waveforms per oscillator triangle, sawtooth, variaole pulse, noise; (3)3 amplitude modulators range: 48dB; (4)oscillator synchrionizationj; (5)master volume control; (6)external audio input.

Diagrams

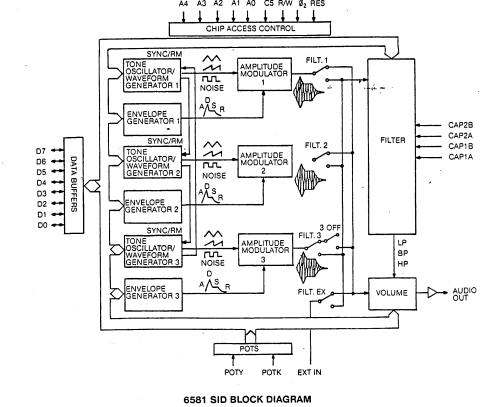

6581 block diagram
