Product Summary
The 403CNQ100 is a center tap Schottky rectifier module. It has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175℃ junction temperature. Typical applications of the 403CNQ100 are in high current switching power supplies, plating power supplies, UPS systems, converters, free-wheeling diodes, welding, and reverse battery protection.
Parametrics
403CNQ100 absolute maximum ratings: (1)IF(AV) Max. Average Forward Current: 400 A; (2)IFSM Max. Peak One Cycle Non-Repetitive: 25,500 A; Surge Current (Per Leg): 3300 A; (3)EAS Non-Repetitive Avalanche Energy: 15 mJ; (4)IAR Repetitive Avalanche Current: 1 A.
Features
403CNQ100 features: (1)175 ℃ TJ operation; (2)Center tap module; (3)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (4)Low forward voltage drop; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability.

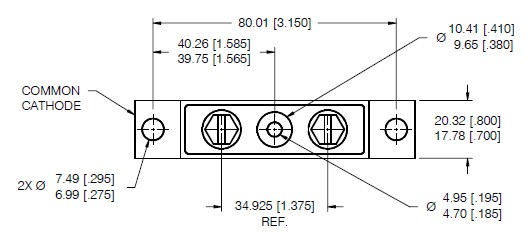

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 403CNQ100 |
|
DIODE SCHOTTKY 100V 400A TO244AB |
Data Sheet |
Negotiable |
|
||||||||||||||||||
