Product Summary

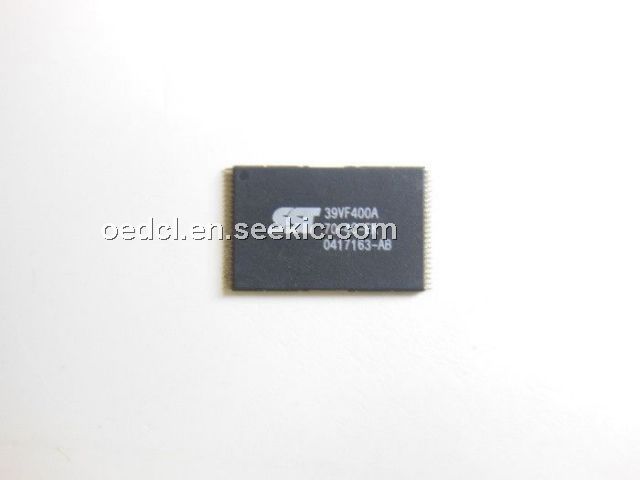

The S39VF400A70-4C-EK is a CMOS Multi-Purpose Flash (MPF) manufactured with SSTs proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The 39VF400A70-4C-EK writes (Program or Erase) with a 2.7-3.6V power supply. The 39VF400A70-4C-EK conforms to JEDEC standard pinouts for x16 memories.
Parametrics
39VF400A70-4C-EK absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD + 0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -1.0V to VDD + 1.0V; (5)Voltage on A9 Pin to Ground Potential: -0.5V to 13.2V; (6)Package Power Dissipation Capability (Ta = 25℃): 1.0W; (7)Surface Mount Lead Soldering Temperature (3 Seconds): 240℃; (8)Output Short Circuit Current: 50 mA.
Features
39VF400A70-4C-EK features: (1)Superior Reliability. Endurance: 100,000 Cycles (typical). Greater than 100 years Data Retention; (2)Low Power Consumption; (3)Active Current: 20 mA (typical); (4)Standby Current: 3μA (typical); (5)Sector-Erase Capability; (6)Uniform 2 KWord sectors; (7)Block-Erase Capability; (8)Uniform 32 KWord blocks; (9)Fast Read Access Time.

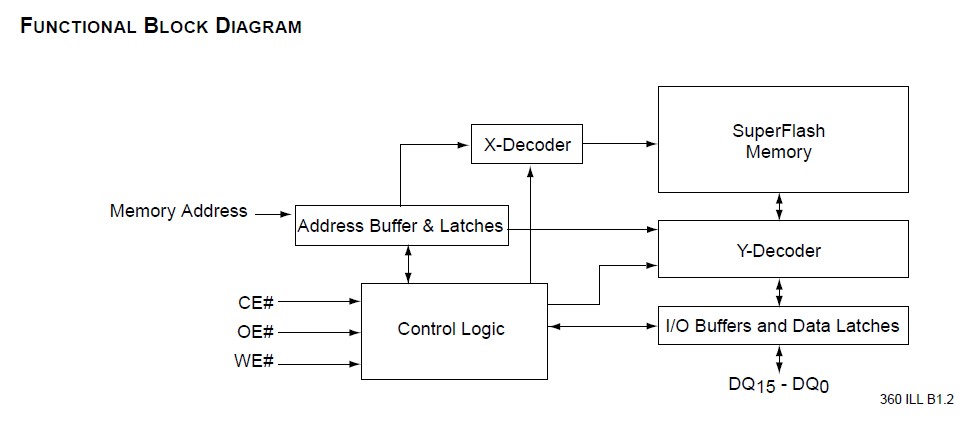

Diagrams
