Product Summary

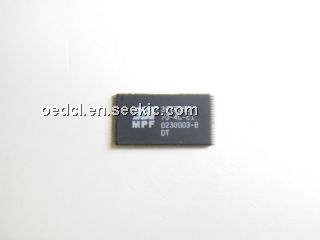

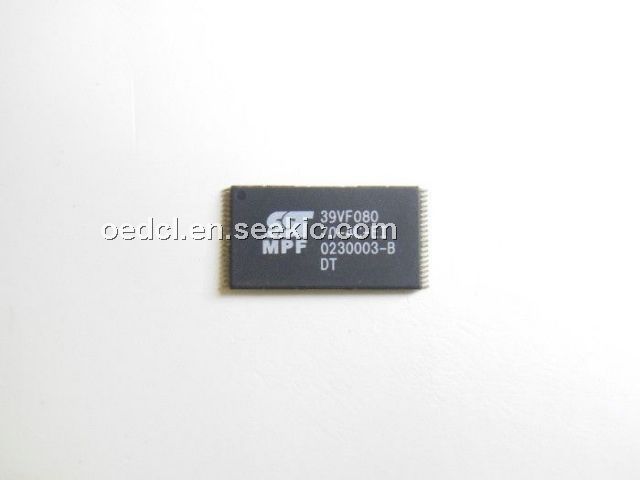

The 39VF08070-4C-EI is an 8 Mbit Multi-Purpose Flash. It is manufactured with SSTs proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The 39VF08070-4C-EI writes (Program or Erase) with a 2.7-3.6V power supply. The 39VF08070-4C-EI conforms to JEDEC standard pinouts for x8 memories.

Parametrics

39VF08070-4C-EI absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -2.0V to VDD+2.0V; (5)Voltage on A9 Pin to Ground Potential: -0.5V to 13.2V; (6)Package Power Dissipation Capability (TA = 25℃): 1.0W; (7)Surface Mount Solder Reflow Temperature: 240℃ for 10 seconds; (8)Output Short Circuit Current: 50 mA.

Features

39VF08070-4C-EI features: (1)Organized as 1M x8; (2)Single Voltage Read and Write Operations; (3)Superior Reliability; (4)Low Power Consumption(typical values at 14 MHz); (5)Sector-Erase Capability; (6)Block-Erase Capability; (7)Latched Address and Data; (8)Automatic Write Timing; (9)End-of-Write Detection; (10)CMOS I/O Compatibility; (11)JEDEC Standard.

Diagrams

39VF08070-4C-EI pin connection
