Product Summary
The 2SK2949 is an N-channel MOS type transistor for high speed, high current switching, chopper regulator, dc-dc converter and motor drive applications.
Parametrics
2SK2949 absolute maximum ratings: (1)drain-source voltage: 400V; (2)drain-gate voltage: 400V; (3)gate-source voltage: ±30V; (4)drain current-DC: 10A; (5)drain current-pulse: 40A; (6)drain power dissipation: 80W; (7)single pulse avalanche energy: 360mJ; (8)availance current: 10A; (9)repetitive avalanche energy: 8mJ; (10)channel temperature: 150℃; (11)storage temperature range: -55~150℃.
Features
2SK2949 features: (1)low drain-source ON resistance; (2)high forward transfer admittance; (3)low leakage current; (4)enhancement-mode.

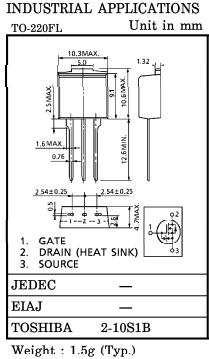

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SK2949 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
2SK2949(TE24L,Q) |
|
MOSFET N-CH 400V 10A TO220SM |
Data Sheet |
|
|
||||||
