Product Summary

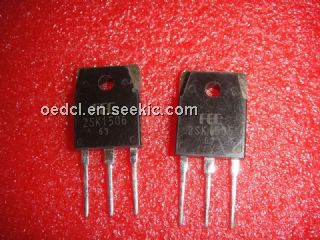

The 2SK1506 is an N-channel silicon power MOS-FET. The applications of the 2SK1506 include Motor controllers, Genaral purpose power amplifier and DC-DC converters.

Parametrics

2SK1506 absolute maximum ratings: (1)Drain-source voltage : 120 V; (2)Continuous drain current : 50 A; (3)Pulsed drain current : 200 A; (4)Continuous reverse drain current : 50 A; (5)Gate-source peak voltage : +20 V; (6)Max. power dissipation : 150 W; (7)Operating and storage : 150 ℃; (8)Temperature range : +150 ℃.

Features

2SK1506 features: (1)High current; (2)Low no-resistance; (3)Low driving power; (4)High forward Transconductance.

Diagrams

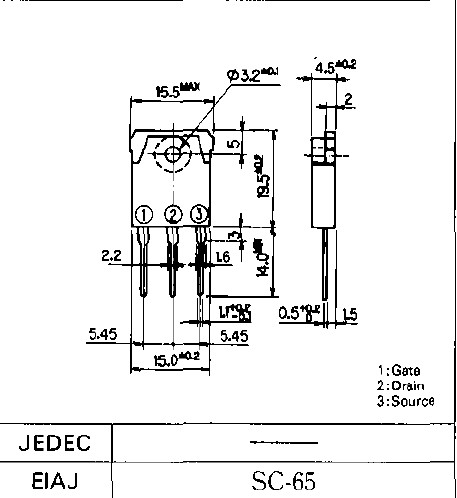

2SK1506 dimension
