Product Summary

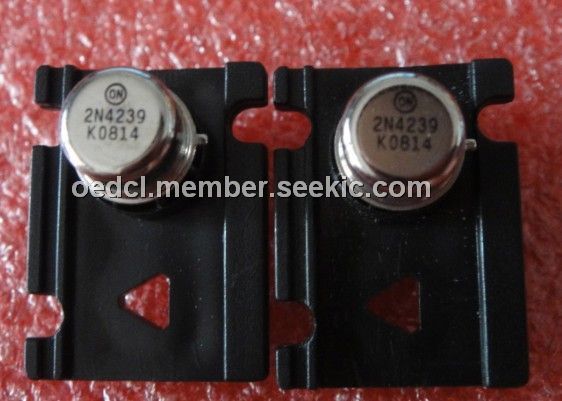

The 2N4239 is a silicon planar epitaxial npn transistor.

Parametrics

2N4239 absolute maximum ratings: (1)VCBO Collector – Base Voltage: 100V; (2)VCEO Collector – Emitter Voltage: 80V; (3)VEBO Emitter – Base Voltage: 6V; (4)IC Continuous Collector Current: 1.0A; (5)IB Base Current: 0.5A; (6)PD Total Power Dissipation at TA = 25°C: 1.0W; (7)Derate Above 25°C: 5.7mW/°C; (8)PD Total Power Dissipation at TC = 25°C: 6W; (9)Derate Above 25°C: 34mW/°C; (10)TJ Junction Temperature Range: -65 to +200°C; (11)Tstg Storage Temperature Range: -65 to +200°C.

Features

2N4239 features: (1)VCBO=100V(Min), VCEO=80V(Min); (2)Hermetic TO-39 Metal package.; (3)Ideally suited for General Purpose and Amplifier Applications; (4)Screening Options Available.

Diagrams

2N4239 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2N4239
2N4239
Central Semiconductor
Transistors Bipolar (BJT) NPN Power Ampl
Data Sheet
0-500: $2.48
