Product Summary

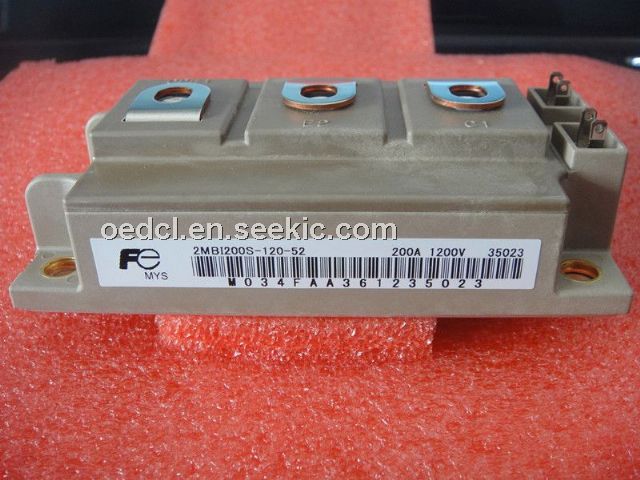

The 2MBI200S-120-52 is an IGBT Module. The applications of the device include High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.

Parametrics

2MBI200S-120-52 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 600 V; (2)Gate -Emitter Voltage, VGES: ± 20 V; (3)collector current, Continuous, IC: 150A; 1ms, IC PULSE: 300A; Continuous, -IC 150A;1ms, -IC PULSE: 300A; (4)Max. Power Dissipation, PC: 600 W; (5)Operating Temperature, Tj: +150℃; (6)Storage Temperature, Tstg: -40 ~ +125℃; (7)Isolation Voltage A.C. 1min, Vis: 2500 V; (8)Screw Torque, Mounting: 3.5Nm; Terminals: 3.5Nm.

Features

2MBI200S-120-52 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (~3 Times Rated Current).

Diagrams

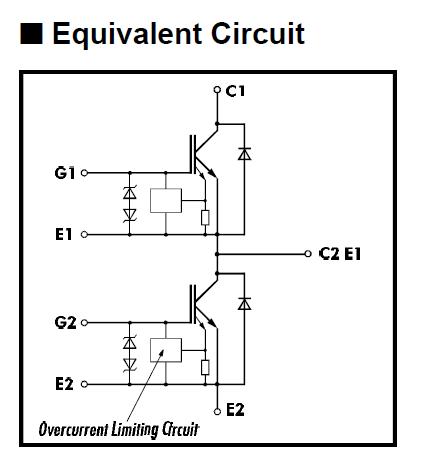

2MBI200S-120-52 pin connection
