Product Summary
The 29LV200TC-90PFTN is an 8M-bit, 3.0 V-only Flash memory organized as 256K bytes of 8 bits each or 128K words of 16 bits each. The MBM29LV200TC/BC are offered in 48-pin TSOP(I) and 44-pin SOP packages. The 29LV200TC-90PFTN is designed to be programmed in-system with the standard system 3.0 V VCC supply. 12.0 V VPP and 5.0 V VCC are not required for write or erase operations. The 29LV200TC-90PFTN can also be reprogrammed in standard EPROM programmers.
Parametrics
29LV200TC-90PFTN absolute maximum ratings: (1)Storage Temperature: -55°C to +125°C; (2)Ambient Temperature with Power Applied: -40°C to +85°C; (3)Voltage with respect to Ground All pins except A9, OE, RESET: -0.5 V to VCC+0.5 V; (4)VCC: -0.5 V to +5.5 V; (5)A9, OE, and RESET: -0.5 V to +13.0 V.
Features
29LV200TC-90PFTN features: (1)single 3.0 v read, program, and erase minimizes system level power requirements; (2)compatible with jedec-standard commands uses same software commands as e2 proms; (3)compatible with jedec-standard world-wide pinouts 48-pin tsop(i)(package suffix: pftn – normal bend type, pftr – reversed bend type), 44-pin sop (package suffix: pf); (4)minimum 100,000 program/erase cycles; (5)high performance: 70 ns maximum access time; (6)sector erase architecture; (7)one 8k word, two 4k words, one 16k word, and three 32k words sectors in word mode; (8)one 16k byte, two 8k bytes, one 32k byte, and three 64k bytes sectors in byte mode; (9)any combination of sectors can be concurrently erased. also supports full chip erase; (10)boot code sector architecture: t = top sector, b = bottom sector; (11)embedded erasetm algorithms automatically pre-programs and erases the chip or any sector; (12)embedded programtm algorithms; (13)automatically writes and verifies data at specified address.

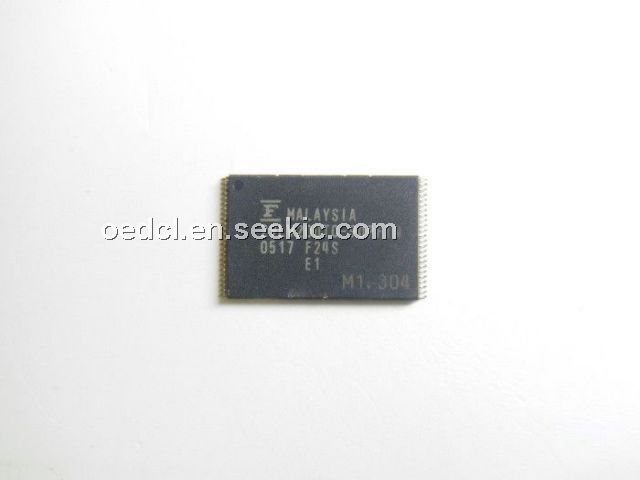

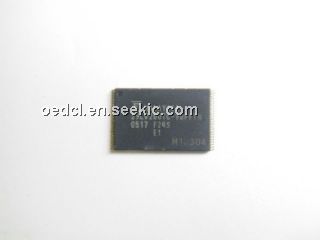

Diagrams
