Product Summary
The 29LV160BTTC-90 is a 16-mega bit flash memory organized as 2M bytes of 8 bits or 1M words of 16 bits. The 29LV160BTTC-90 offer the most cost-effective and reliable read/write non-volatile random access memory. The 29LV160BTTC-90 is packaged in 44-pin SOP, 48-pin TSOP and 48-ball CSP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers. The standard 29LV160BTTC-90 offers access time as fast as 70ns, allowing operation of high-speed microprocessors without wait states. To eliminate bus contention, the 29LV160BTTC-90 has separate chip enable (CE) and output enable (OE) controls.
Parametrics
29LV160BTTC-90 absolute maximum ratings: (1)Storage temperature plastic packages: -65℃ to +150℃; (2)Ambient temperature with power applied: -65℃ to +125℃; (3)Voltage with respect to ground VCC (Note 1): -0.5 V to +4.0 V; A9, OE, and RESET (Note 2): -0.5 V to +12.5 V; All other pins (Note 1): -0.5 V to VCC +0.5 V; (4)Output short circuit current (Note 3): 200 mA.
Features
29LV160BTTC-90 features: (1)Extended single - supply voltage range 2.7V to 3.6V; (2)2,097,152 x 8/1,048,576 x 16 switchable; (3)Single power supply operation: 3.0V only operation for read, erase and program operation; (4)Fully compatible with MX29LV160A device; (5)Fast access time: 70/90ns; (6)Low power consumption: 30mA maximum active current; 0.2uA typical standby current; (7)Command register architecture: Byte/word Programming (9us/11us typical); Sector Erase (Sector structure 16K-Bytex1, 8K-Bytex2, 32K-Bytex1, and 64K-Byte x31); (8)Auto Erase (chip & sector)and Auto Program: Automatically erase any combination of sectors with Erase Suspend capability; Automatically program and verify data at specified address; (9)Erase Suspend/Erase Resume: Suspends sector erase operation to read data from, or program data to, any sector that is not being erased, then resumes the erase.

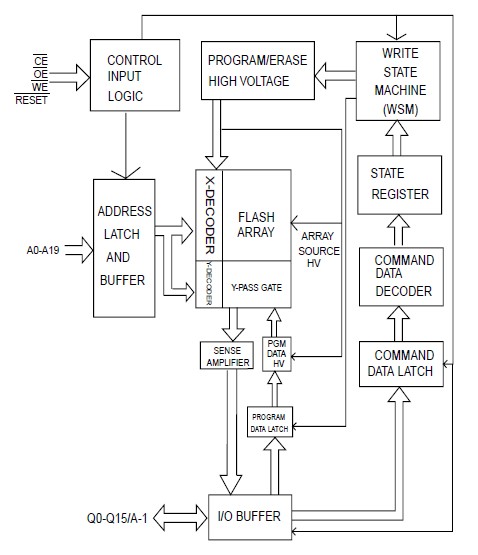

Diagrams
