Product Summary

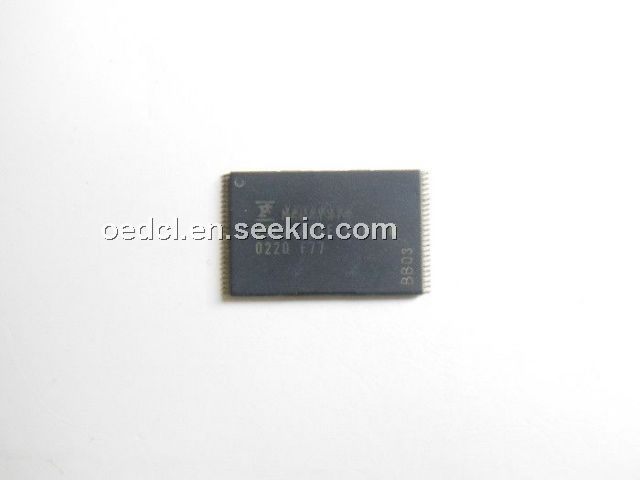

The 29LV160BE-90PFTN is a 16M-bit, 3.0 V-only Flash memory organized as 2M bytes of 8 bits each or 1M words of 16 bits each. The 29LV160BE-90PFTN is offered in a 48-pin TSOP (I), 48-pin CSOP and 48-ball FBGA packages. The 29LV160BE-90PFTN is designed to be programmed in-system with the standard system 3.0 V VCC supply. 12.0V VPP and 5.0 V VCC are not required for write or erase operations. The device can also be reprogrammed in standard EPROM programmers.
Parametrics
29LV160BE-90PFTN absolute maximum ratings: (1)Storage Temperature:–55℃ to +125℃; (2)Ambient Temperature with Power Applied:–40℃ to +85℃; (3)Voltage with Respect to Ground All pins except A9, OE, RESET:-0.5V to VCC+0.5V; (4)Power Supply Voltage:–0.5V to +5.5V; (5)A9, OE, and RESET:–0.5V to +13.0V.
Features
29LV160BE-90PFTN features: (1)0.23 μm Process Technology; (2)Single 3.0 V read, program and erase: Minimizes system level power requirements; (3)Compatible with JEDEC-standard commands Uses same software commands as E2PROMs; (4)Minimum 100,000 program/erase cycles; (5)High performance: 70 ns maximum access time; (6)Data Polling and Toggle Bit feature for detection of program or erase cycle completion; (7)Ready/Busy output (RY/BY): Hardware method for detection of program or erase cycle completion; (8)Automatic sleep mode: When addresses remain stable, automatically switches themselves to low power mode; (9)Low VCC write inhibit ≤ 2.5 V; (10)Erase Suspend/Resume: Suspends the erase operation to allow a read data and/or program in another sector within the same device; (11)Sector protection: Hardware method disables any combination of sectors from program or erase operations; (12)Sector Protection Set function by Extended sector Protection command; (13)Fast Programming Function by Extended command; (14)Temporary sector unprotection: Temporary sector unprotection via the RESET pin; (15)In accordance with CFI (Common Flash Memory Interface).

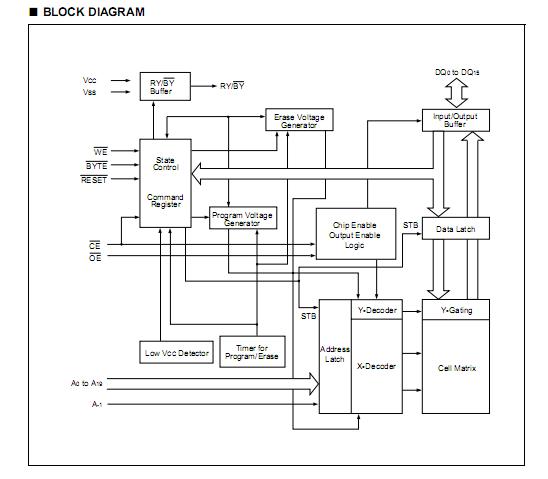

Diagrams
