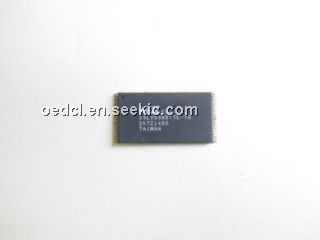

Product Summary
The 29LV008BTTC-70 is an 8 Megabit CMOS 3.0 Volt-only Boot Sector Flash Memory organized as 1,048,576 bytes. The 29LV008BTTC-70 is offered in a 40-pin TSOP package. The byte-wide (x8) data appears on DQ7–DQ0. This device requires only a single, 3.0 volt VCC supply to perform read, program, and erase operations. A standard EPROM programmer can also be used to program and erase the device. The 29LV008BTTC-70 is manufactured using AMD’s 0.35μm process technology, and offers all the features and benefits of the 29LV008BTTC-70, which was manufactured using 0.5μm process technology. In addition, the 29LV008BTTC-70 features unlock bypass programming and in-system sector protection/unprotection.
Parametrics
29LV008BTTC-70 absolute maximum ratings: (1)Storage Temperature Plastic Packages:–65℃ to +150℃; (2)Ambient Temperature with Power Applied:–65℃ to +125℃; (3)Voltage with Respect to Ground VCC (Note 1):–0.5V to +4.0V; (4)A9, OE#, and RESET# (Note 2):–0.5V to +12.5V; (5)All other pins (Note 1):–0.5 V to VCC+0.5V; (6)Output Short Circuit Current (Note 3): 200mA.
Features
29LV008BTTC-70 features: (1)Single power supply operation; (2)Manufactured on 0.35 μm process technology; (3)High performance; (4)Ultra low power consumption (typical values at 5 MHz); (5)Flexible sector architecture; (6)Unlock Bypass Program Command; (7)Top or bottom boot block configurations available; (8)Embedded Algorithms; (9)Minimum 1,000,000 write cycle guarantee per sector; (10)Package option 40-pin TSOP; (11)Compatibility with JEDEC standards; (12)Data# Polling and toggle bits; (13)Ready/Busy# pin (RY/BY#); (14)Erase Suspend/Erase Resume; (15)Hardware reset pin (RESET#).

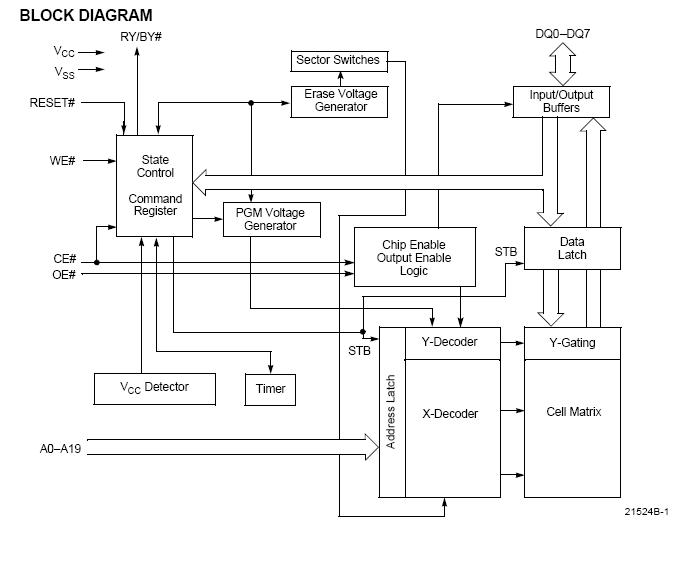

Diagrams
