Product Summary

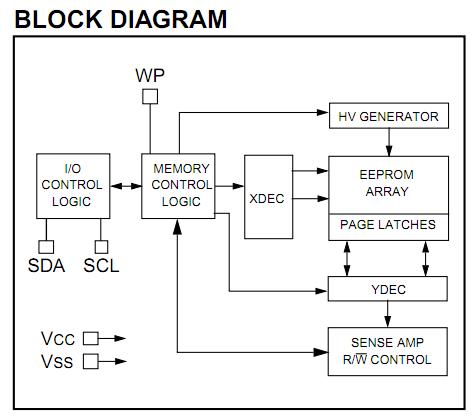

The 24C02B is a 2K bit Electrically Erasable PROM. The 24C02B is organized as a single block of 128 × 8 bit or 256 × 8 bit memory with a 2-wire serial interface. The 24C02B also has page-write capability for up to 8 bytes of data. The 24C02B is available in the standard 8-pin DIP and an 8-pin surface mount SOIC package.

Parametrics

24C02B absolute maximum ratings: (1)VCC: 7.0V; (2)All inputs and outputs w.r.t. VSS: -0.6V to VCC +1.0V; (3)Storage temperature: -65 to +150℃; (4)Ambient temp. with power applied: -65 to +125℃; (5)Soldering temperature of leads (10 seconds): +300℃; (6)ESD protection on all pins: ≥ 4 kV.

Features

24C02B features: (1)Single supply with 5.0V operation; (2)Low power CMOS technology: 1 mA active current typical; 10 μA standby current typical at 5.0V; 5 μA standby current typical at 5.0V; (3)Organized as a single block of 128 bytes (128 × 8) or 256 bytes (256 × 8); (4)2-wire serial interface bus, I2C compatible; (5)100 kHz compatibility; (6)Self-timed write cycle (including auto-erase); (7)Page-write buffer for up to 8 bytes; (8)2 ms typical write cycle time for page-write; (9)Hardware write protect for entire memory; (10)Can be operated as a serial ROM; (11)ESD protection > 3,000V; (12)1,000,000 ERASE/WRITE cycles guaranteed Data retention > 200 years; (13)8 pin DIP or SOIC package; (14)Available for extended temperature ranges: Automotive (E): -40 to +125℃.
