Product Summary

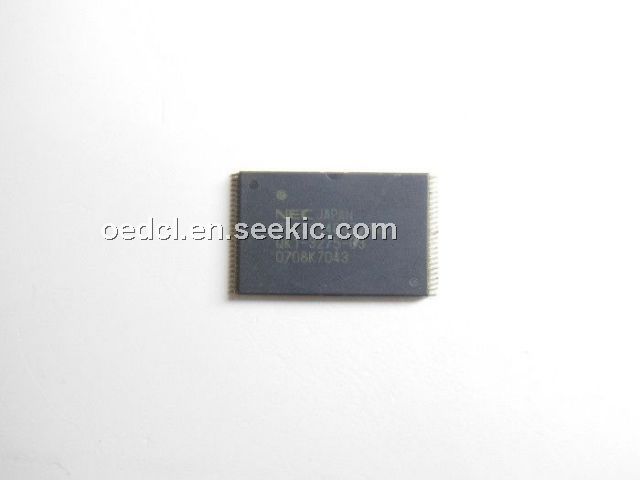

The 23C32340GZ-745 is a mask-programmable ROM. The word organization is selectable (BYTE mode : 4,194,304 words by 8 bits, WORD mode : 2,097,152 words by 16 bits). The active levels of OE (Output Enable Input) can be selected with mask-option. The 23C32340GZ-745 is packed in 48-pin PLASTIC TSOP(I) and 48-pin TAPE FBGA.
Parametrics
23C32340GZ-745 absolute maximum ratings: (1)Supply voltage VCC: -0.3 to +4.6 V; (2)Input voltage VI: -0.3 to VCC+0.3 V; (3)Output voltage VO: -0.3 to VCC+0.3 V; (4)Operating ambient temperature TA: -10 to +70 °C; (5)Storage temperature Tstg: -65 to +150 °C; (6)Input capacitance CI f = 1 MHz: 10 pF; (7)Output capacitance CO: 12 pF.
Features
23C32340GZ-745 features: (1)Pin compatible with NOR Flash Memory; (2)Word organization 4,194,304 words by 8 bits (BYTE mode), 2,097,152 words by 16 bits (WORD mode); (3)Page access mode; (4)Operating supply voltage: VCC = 2.7 V to 3.6 V.

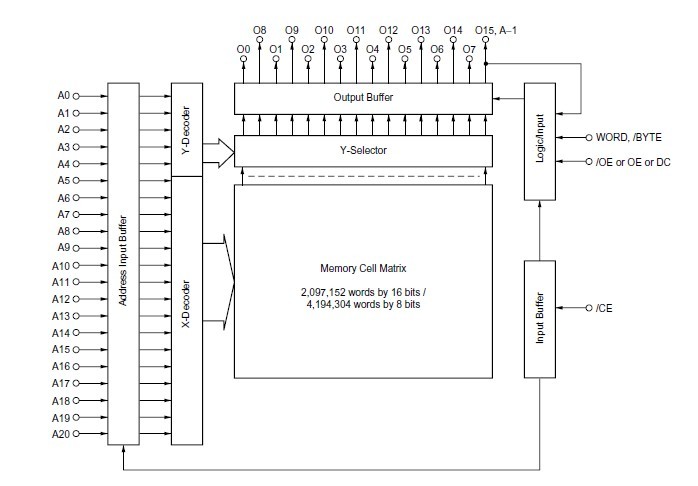

Diagrams
