Product Summary

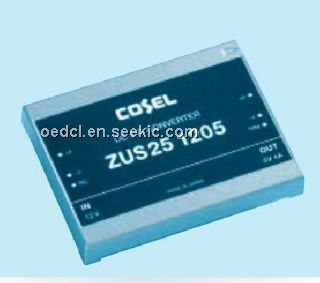

The ZUS251205 is a thin profile isolated between input-output.
Parametrics
ZUS251205 specifications: (1)input current: 2.03typA; (2)input efficiency: 82typ%; (3)output voltage: 5V; (4)output current: 4.0A; (5)output load regulation: 40maxmV; (6)output line regulation: 20maxmV; (7)output ripple: 80maxmVp-p; (8)output ripple noise: 120maxmVp-p; (9)output start-up time: 100maxms; (10)isolation: AC500V 1minute,Cutoff current = 10mA,DC500V 50MW min (20±15℃).
Features
ZUS251205 features: (1)UL recognized, TV approved, CSA certified ; (2)Isolated between input-output ; (3)Thin profile ; (4)Built-in Over Current Protection ; (5)RoHS Compliant.

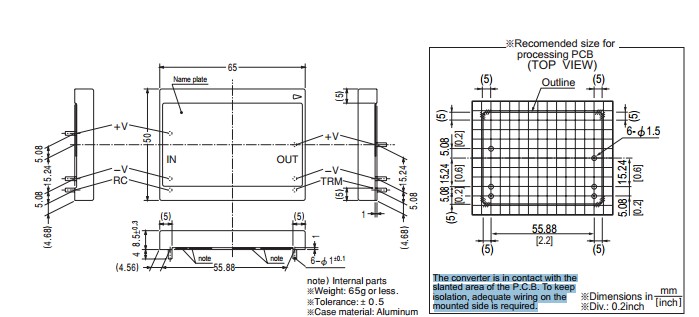

Diagrams
