Product Summary

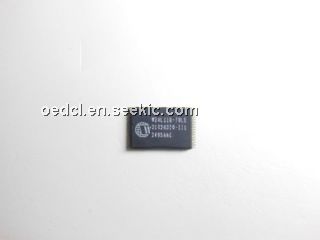

The W24L11Q-70LE is a normal-speed, very low-power CMOS static RAM organized as 131072 × 8 bits that operates on a wide voltage range from 3.0V to 3.6V power supply. The W24L11Q-70LE is manufactured using Winbond high performance CMOS technology.
Parametrics
W24L11Q-70LE absolute maximum ratings: (1)Supply voltage to VSS potential: -0.5 to +4.6 V; (2)Input/Output to VSS potential: -0.5 to VDD +0.5 V; (3)Allowable power dissipation: 1.0 W; (4)Storage temperature: -65 to +150 °C; (5)Operating temperature: 0 to 70 °C.
Features
W24L11Q-70LE features: (1)Low power consumption: Active: 144 mW (max.); (2)Access time: 70 nS; (3)Single 3.3V power supply; (4)Fully static operation; (5)All inputs and outputs directly TTL compatible; (6)Three-state outputs; (7)Battery back-up operation capability; (8)Data retention voltage: 2V (min.); (9)Packaged in 600 mil DIP, 450 mil SOP, standard type one, TSOP (8 mm × 20 mm), small type one and TSOP (8 mm × 13.4 mm).
Diagrams
