Product Summary

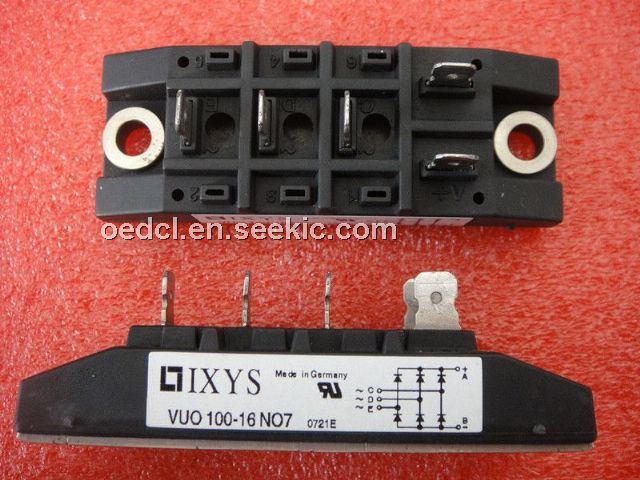

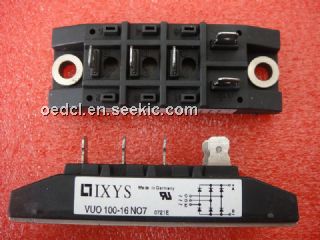

The VUO100-16NO7 is a three phase rectifier bridge. Applications are (1)Supplies for DC power equipment; (2)Input rectifiers for PWM inverter; (3)Battery DC power supplies; (4)Field supply for DC motors.
Parametrics
VUO100-16NO7 absolute maximum ratings: (1)IdAV TC = 100°C, module: 100 A; (2)IFSM TVJ = 45°C; t = 10 ms (50 Hz), sine: 1000 A; VR = 0 t = 8.3 ms (60 Hz), sine: 1100 A; TVJ = TVJM t = 10 ms (50 Hz), sine: 700 A; VR = 0 t = 8.3 ms (60 Hz), sine: 750 A; (3)I2t TVJ = 45°C t = 10 ms (50 Hz), sine: 5000 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 5020 A2s; TVJ = TVJM t = 10 ms (50 Hz), sine: 2450 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 2330 A2s; (4)TVJ: -40 to +150 °C; (5)TVJM: 150 °C; (6)Tstg: -40 to +125 °C; (7)VISOL 50/60 Hz, RMS t = 1 min: 2500 V~; IISOL ≤ 1 mA t = 1 s: 3000 V~; (8)Md Mounting torque (M5): 5 ± 15 % Nm; (10-32 UNF): 44 ± 15 % lb.in.; (9)Weight typ: 110 g.
Features
VUO100-16NO7 features: (1)Package with copper base plate; (2)Isolation voltage 3000 V~; (3)Planar passivated chips; (4)Low forward voltage drop; (5)¼" fast-on power terminals.

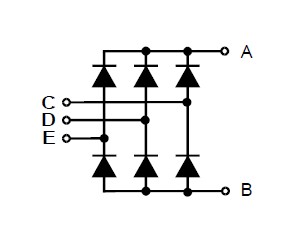

Diagrams
