VND600SP

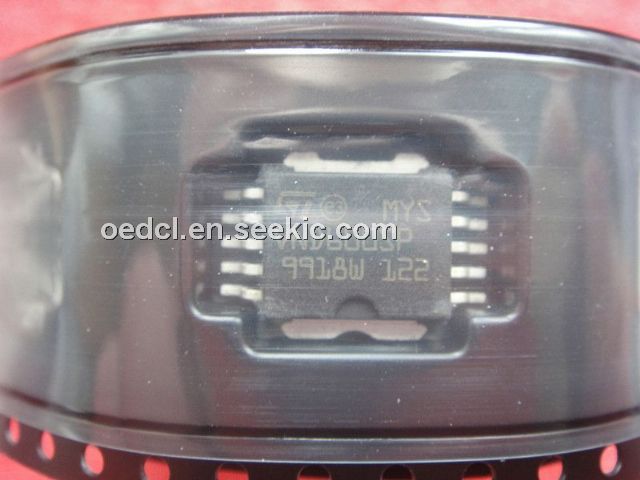

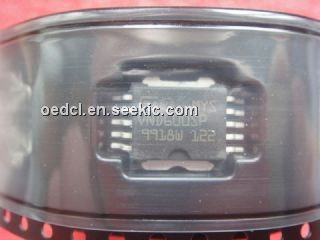

VND600SP, double channel high side solid state relay, SOP, -0.3V, 41V, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 5 :	2.00 / Piece
10 ~ 100 :	1.80 / Piece

PartNumber:: VND600SP

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-10

From Other Seller

Part Number:VND600SP
US $1.80 - 2.00
Quantity:

piece

Product Summary

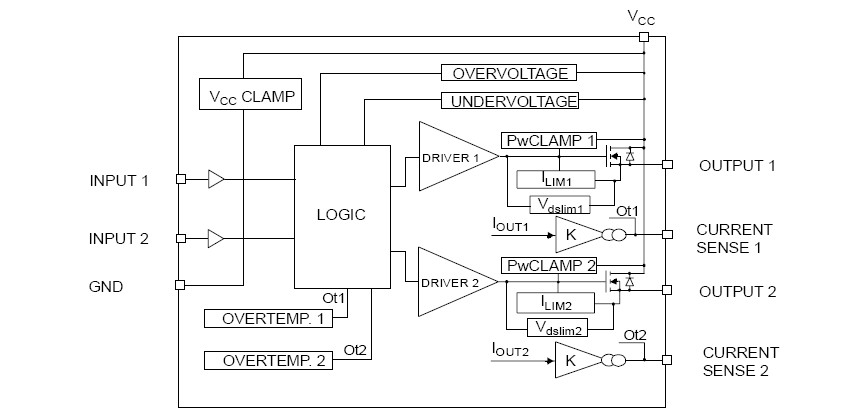

The VND600SP is a double channel high side solid state relay. The VND600SP is a monolithic device made using STMicroelectronics VIPower M0-3 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). This device has two channels in high side configuration; each channel has an analog sense output on which the sensing current is proportional (according to a known ratio) to the corresponding load current. Built-in thermal shut-down and outputs current limitation protect the chip from over temperature and short circuit. Device turns off in case of ground pin disconnection.

Parametrics

VND600SP absolute maximum ratings: (1)DC supply voltage: 41 V; (2)Reverse supply voltage: -0.3 V; (3)DC reverse ground pin current: -200 mA; (4)Output current Internally: limited A; (5)Reverse output current: -21 A; (6)Input current: ±10 mA; (7)Current sense maximum voltage: -3V; (8)Maximum Switching Energy: 145 mJ; (9)Power dissipation at Tc=25℃: 96.1 W; (10)Junction operating temperature: Internally limited °C; (11)Case operating temperature: -40 to 150 ℃; (12)Storage temperature: -55 to 150 ℃.
