Product Summary

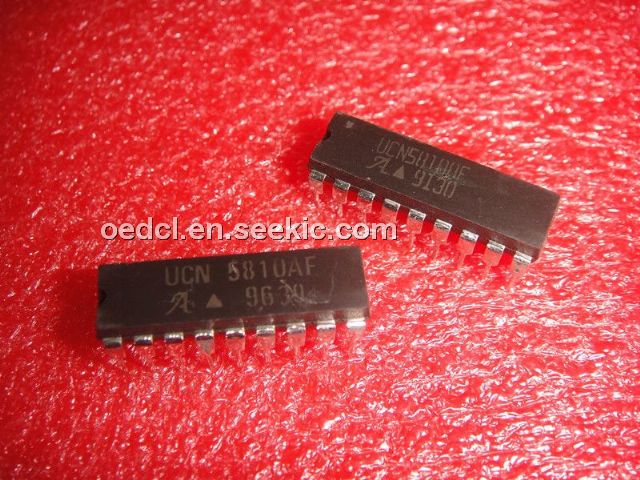

The UCN5810AF is a BiMOS II 10-bit serial-input, latched source driver with active-DMOS pull-downs. The UCN5810AF combines a 10-bit CMOS shift register and accompanying data latches, control circuitry, bipolar sourcing outputs with DMOS active pull-downs. Designed primarily to drive vacuum-fluorescent displays, the 60 V and -40 mA output ratings also allow the UCN5810AF to be used in many other peripheral power driver applications. The UCN5810AF features reduced supply requirements (active DMOS pull-downs) and lower saturation voltages when compared with the original UCN5810A.
Parametrics
UCN5810AF absolute maximum ratings: (1)Logic Supply Voltage, VDD: 15 V; (2)Driver Supply Voltage, VBB: 60 V; (3)Continuous Output Current Range, IOUT: -40 mA to +15 mA; (4)Input Voltage Range, VIN : -0.3 V to VDD + 0.3 V; (5)Package Power Dissipation, PD (UCN5810AF) : 2.27 W; (6)Operating Temperature Range, TA: -20 to +85℃; (7)Storage Temperature Range, TS: -55 to +150℃.
Features
UCN5810AF features: (1)High-Speed Source Drivers; (2)60 V Minimum Output Breakdown; (3)Improved Replacements for TL4810B; (4)Low Output Saturation Voltages; (5)Low-Power CMOS Logic and Latches; (6)To 3.3 MHz Data Input Rate; (7)Active DMOS Pull-Downs.

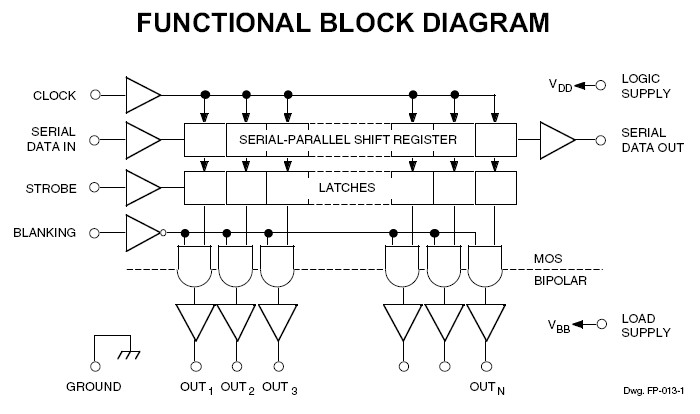

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 UCN5810AF |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
UCN5800A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
UCN5804B |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
UCN5810A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
UCN5810AF |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
UCN5810EPF |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
UCN5810LWF |
Other |
|
Data Sheet |
Negotiable |
|
||||
