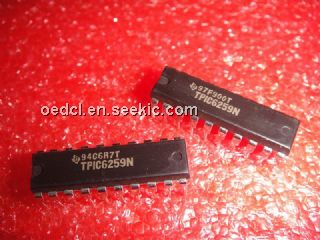

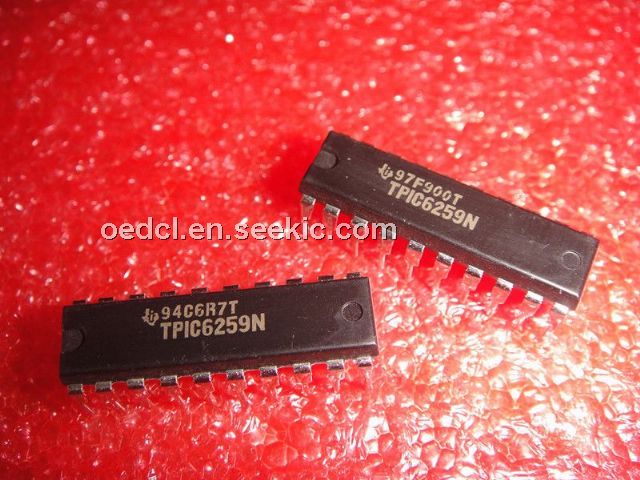

TPIC6259N

TPIC6259N, power logic 8-bit addressable latch, 7 V, 1 A, 1.3 W, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.00 / Piece
20 ~ 100 :	1.80 / Piece

PartNumber:: TPIC6259N

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-04

From Other Seller

Part Number:TPIC6259N
US $1.80 - 2.00
Quantity:

piece

Product Summary

The TPIC6259N is a power logic 8-bit addressable latch. It is controls open-drain DMOS transistor outputs and is designed for general-purpose storage applications in digital systems. Specific uses include working registers, serial-holding registers, and decoders or demultiplexers. The TPIC6259N is a multifunctional device capable of storing single-line data in eight addressable latches with 3-to-8 decoding or demultiplexing mode active-low DMOS outputs.

Parametrics

TPIC6259N absolute maximum ratings: (1)Logic supply voltage, VCC (see Note 1): : 7 V; (2)Logic input voltage range, VI: –0.3 V to 7 V; (3)Power DMOS drain-to-source voltage, VDS (see Note 2): 45 V; (4)Continuous source-drain diode anode current: 1 A; (5)Pulsed source-drain diode anode current: 2 A; (6)Pulsed drain current, each output, all outputs on, IDn, TA = 25°C (see Note 3): 750 mA; (7)Continuous drain current, each output, all outputs on, IDn, TA = 25°C: 250 mA; (8)Peak drain current single output, IDM, TA = 25°C (see Note 3): 2 A; (9)Single-pulse avalanche energy, EAS (see Note 4): 75 mJ; (10)Avalanche current, IAS (see Note 4): 1 A; (11)Continuous total power dissipation: See Dissipation Rating Table; (12)Operating virtual junction temperature range, TJ: –40°C to 150°C; (13)Storage temperature range, Tstg: –65°C to 150°C; (14)Lead temperature 1.6 mm (1/16 inch)from case for 10 seconds: 260°C.

Features

TPIC6259N features: (1)Low rDS(on): 1.3 W Typical; (2)Avalanche Energy. 75 mJ; (3)Eight Power DMOS Transistor Outputs of 250-mA Continuous Current; (4)1.5-A Pulsed Current Per Output; (5)Output Clamp Voltage at 45 V; (6)Four Distinct Function Modes; (7)Low Power Consumption.
