Product Summary

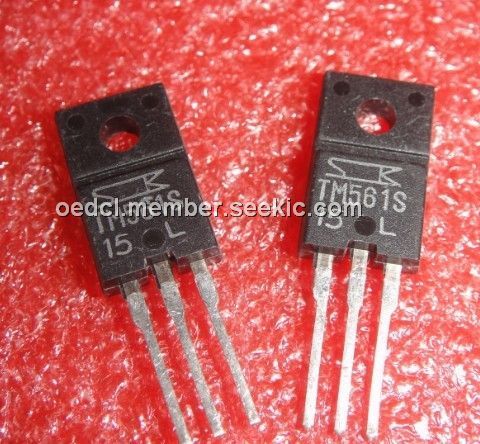

The TM561S is a triac.
Parametrics
TM561S absolute maximum ratings: (1)Repetitive peak off-state voltage VDRM: 600V; (2)RMS on-state current IT: 5.0A; (3)Surge on-state current ITSM: 50A; (4)Peak gate voltage VGM: 10V; (5)Peak gate current IGM: 2A; (6)Peak gate power loss PGM: 5W; (7)Average gate power loss PG: 0.5W; (8)Junction temperature Tj: –40 to +125℃; (9)Storage temperature Tstg: –40 to +125℃; (10)Isolation voltage VISO: 1500Vrms. .
Features
TM561S features: (1)Repetitive peak off-state votage: VDRM=400, 600V; (2)RMS on-state current: IT(RMS)=5A; (3)Gate trigger current: IGT=20mA max (MODE , , ); (4)Isoation votage: VISO=1500V(50Hz Sine wave, RMS); (5)UL approved type avaiabe.

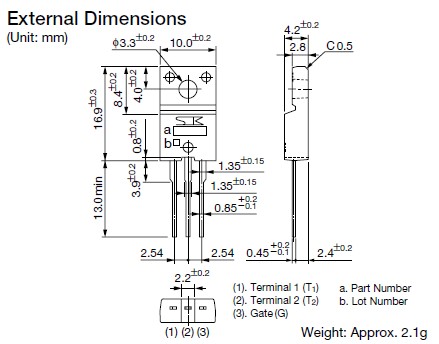

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TM561S-L |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TM561S-R |
Other |
|
Data Sheet |
Negotiable |
|
||||
