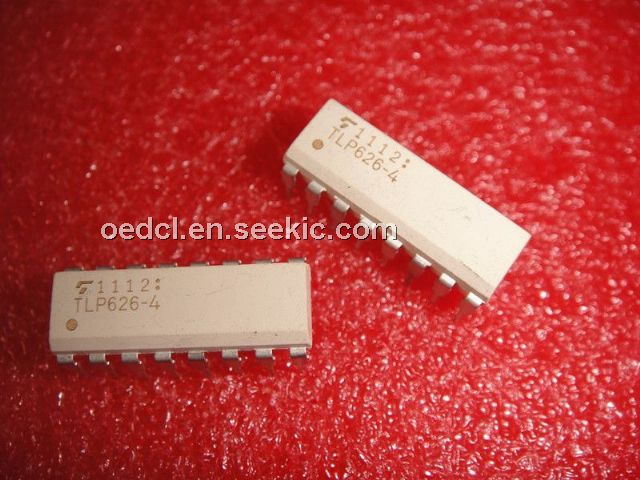

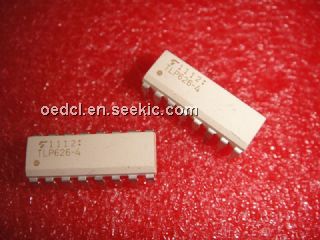

Product Summary
The TLP626-4 is a programmable controller. It consists of gallium arsenide infrared emitting diodes connected in inverse parallel, optically coupled to a photo-transistor. The TLP626-4 provides four isolated channels in a sixteen plastic DIP.
Parametrics
TLP626-4 absolute maximum ratings: (1)forward current(LED): 50mA; (2)forward current deratings(LED): -0.5mA/℃; (3)pulse forward current(LED): 1A; (4)power dissipation(LED): 70mW; (5)power dissipation deratings(LED): -0.7mW/℃; (6)junction temperature(LED): 125℃; (7)collector-emitter voltage(detector): 55V; (8)emitter-collector voltage(detector): 7V; (9)collector current(detector): 50mA; (10)collector power dissipation(detector): 100mW; (11)collector dissipation deratings(detector): -1.0mW/℃; (12)junction temperature(detector): 125℃; (13)storage temperature range: -55 to 125℃; (14)operating temperature range: -55 to 100℃; (15)lead soldering temperature: 260℃; (16)total package power dissipation: 150mW; (17)isolation voltage: 5000Vrms.
Features
TLP626-4 features: (1)collector-emitter voltage: 55V; (2)isolation volate: 5000Vrms Min.; (3)Ul recognized; (4)BSI approved.

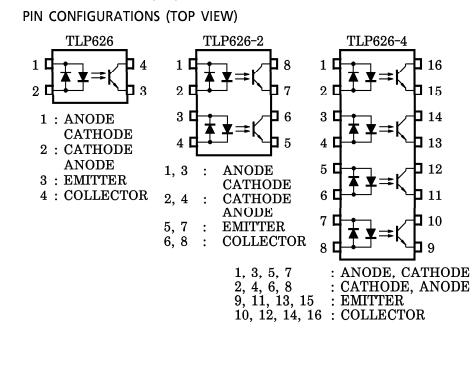

Diagrams
