Product Summary

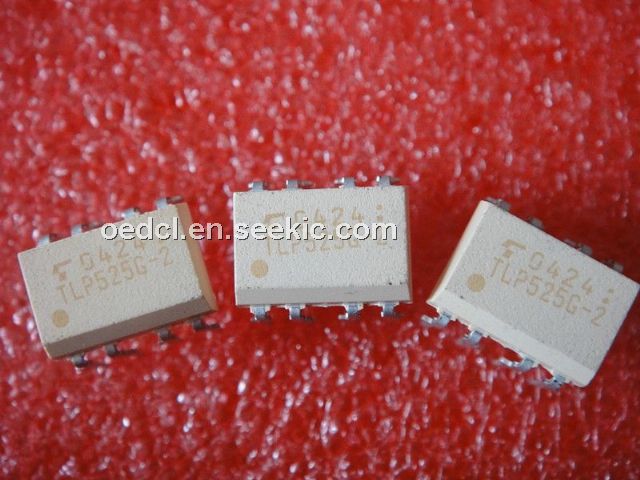

The TLP525G-2 GaAs IRed & Photo-Triac consist of a photo-triac optically coupled to a gallium arsenide infrared emitting diode. The TLP525G-2 offers two isolated channels in an eight lead plastic DIP package.
Parametrics
TLP525G-2 absolute maximum ratings: (1)On-state current derating (Ta≥25°C): -0.9 mA / °C; (2)Peak on state current: ITP: 2 (100µs pulse, 120pps)A; (3)Peak nonrepetitive surge current (PW = 10ms, DC = 10%)1.2 A; (4)Junction temperature: Tj: 115 °C; (5)Storage temperature range: Tstg: -55~125 °C; (6)Operating temperature range: Topr: -40~100 °C; (7)Lead soldering temperature; Tsol: 260 (10s)°C; (8)Isolation voltage: BVS: 2500 (AC, 1min., R.H. ≤ 60%)Vrms.
Features
TLP525G-2 features: (1)Peak off-stage voltage: 400V (min.); (2)Trigger LED current: 10mA (max.); (3)Peak on-stage current: 2Apk (max.); (4)Isolation voltage: 2500Vrms (min.); (5)UL recognized: File no.E67349.

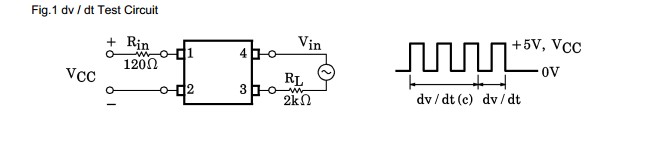

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP525G-2 |
|
PHOTOCOUPLER DUAL TRIAC-OUT 8DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP525G-2(F) |
Toshiba |
Triac & SCR Output Optocouplers 400Vdrm 2500Vrms 2 Channels |
Data Sheet |
|
|
||||||||||||
