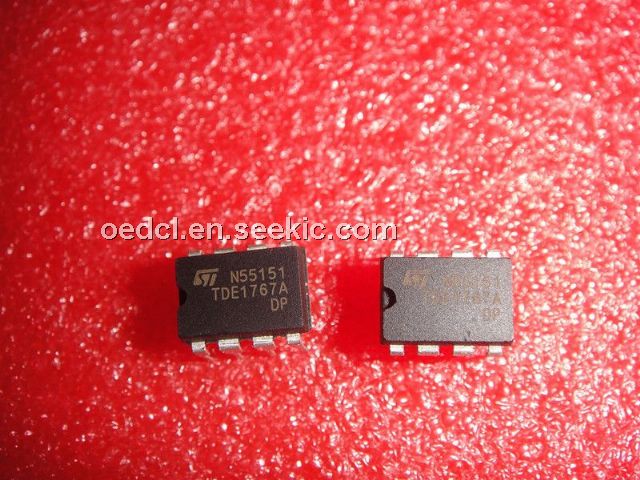

TDE1767ADP

TDE1767ADP, relay and lamp-driver, 60V, 1.3A, - 25 to + 85 ℃, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
20 ~ 100 :	0.80 / Piece

PartNumber:: TDE1767ADP

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-14

From Other Seller

Part Number:TDE1767ADP
US $0.80 - 1.00
Quantity:

piece

Product Summary

The TDE1767ADP is a monolithic amplifier, it designed for high current and high voltage applications, specifically to drive lamps, relays, stepping motors.The devices are assentially blow-out proof. The output is prois protected from short-circuits with the positive supply or drive. In addition thermal shut down is provited to keep the IC from overheathing.If internal dissipation becomes too high, the driver will shut down to prevent excessive heating. The output stays null after the overheating is off, if the reset input is low. If high the output will alternatively switch-on and off until the overload is removed.

Parametrics

TDE1767ADP absolute maximum ratings: (1)Supply Voltage: 60V; (2)Input Differential Voltage: 60V; (3)Input Voltage: - 10 to + 60V; (4)Output Current: 1.3A; (5)Reset Input Voltage: - 0.5 to + 60V; (6)Alarm Output Current: - 10 to + 20 mA; (7)Power Dissipation: Internally Limited; (8)Operating Ambient Temperature Range: - 25 to + 85 ℃; (9)Storage Temperature Range: - 65 to + 150℃.

Features

TDE1767ADP features: (1)Open ground protection; (2)High output current; (3)Adjustable short-circuit protection; (4)Internal thermal protection with external reset; (5)Large supply voltage range; (6)Alarm output; (7)Input voltage can be higher thanVcc; (8)Output voltage can be lower than ground (Vcc - Vo ≤ Vcc[max]).
