Product Summary

The TDA4718A is a Switched-Mode Power Supply. The versatile SMPS control ICs comprise digital and analog functions which are required to design high-quality flyback, single-ended and push-pull converters in normal, half-bridge and full-bridge configurations. The component can also be used in singleended voltage multipliers and speed-controlled motors. Malfunctions in electrical operation are recognized by the integrated operational amplifiers, which activate protective functions.

Parametrics

TDA4718A absolute maximum ratings: (1)Supply voltage(Voltage at Q1, Q2): -0.3V to 33V; (2)Current at Q1, Q2: 70mA; (3)Sync output: -0.3V to 7V, 0mA to 10mA; (4)Output K5: -0.3V to 33V; (5)Reference voltage: -0.3V; (6)Input Csoft start: -0.3V to 7V; (7)Junction temperature: 150℃; (8)Storage temperature: -55℃-125℃.

Features

TDA4718A features: (1)Feed-forward control (line hum suppression); (2)Push-pull outputs; (3)Dynamic output current limitation; (4)Overvoltage protection; (5)Undervoltage protection; (6)Soft start; (7)Double pulse suppression.

Diagrams

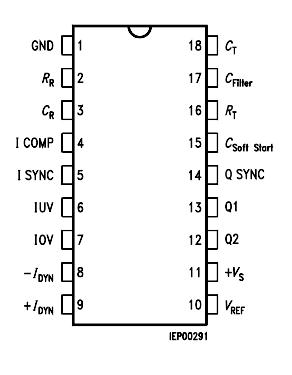

TDA4718A pin connection
