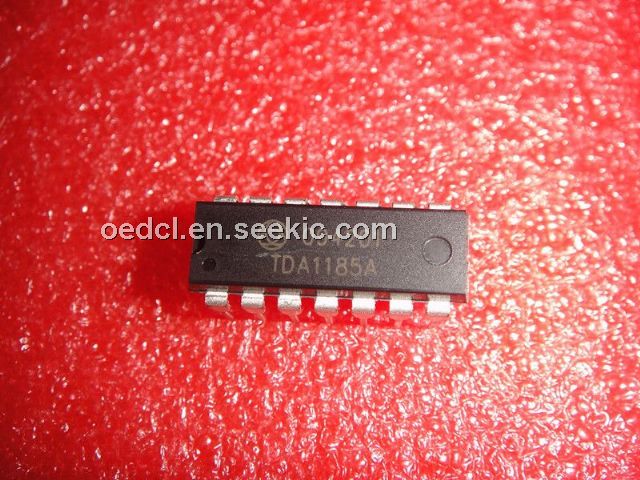

TDA1185A

TDA1185A, Triac Phase Angle Controller, DIP, -20V, 20V, Motorola, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~3.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	3.30 / Piece
100 ~ 1000 :	3.00 / Piece

PartNumber:: TDA1185A

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-04

From Other Seller

Part Number:TDA1185A
US $3.00 - 3.30
Quantity:

piece

Product Summary

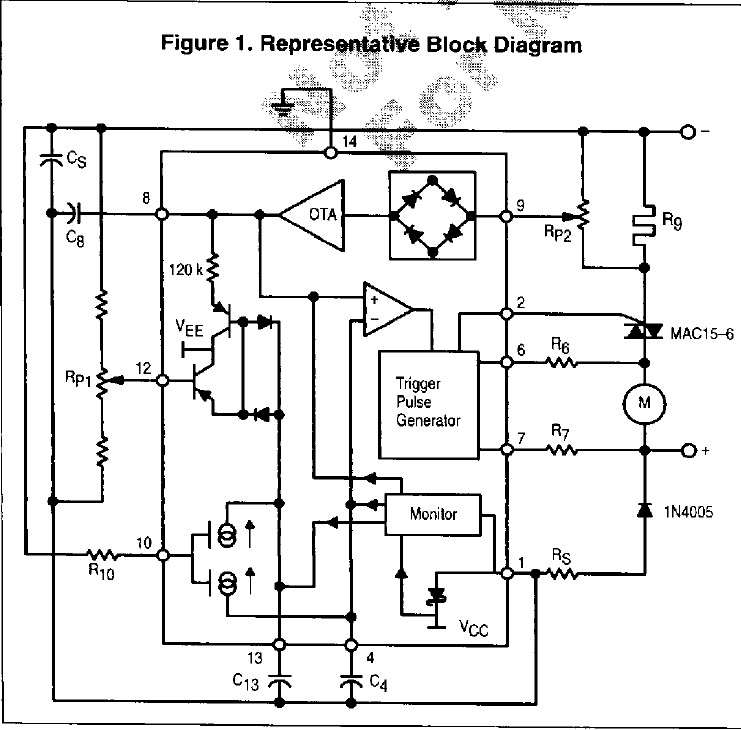

The TDA1185A is a Triac Phase Angle Controller. The TDA1185A generates controlled triac triggering pulses and allows tachless speed stabilization of universal motors by an integrated positive feedback function. Typical applications are power hand tools, vacuum cleaners, mixers, light dimmer and other small appliances.

Parametrics

TDA1185A absolute maximum ratings: (1)Maximum Voltage Range per Listed Pin: -20 to 20V; (2)Maximum Positive Voltage: 0V; (3)Maximum Current per Listed Pin: ±20mA; (4)Maximum Power Dissipation: 250mW; (5)Maximum Thermal Resistance, Junction-to-Ambient: 100℃/W; (6)Operating Ambient Temperature Range: 0 to 70℃; (7)Storage Temperature Range: -55 to +125℃.

Features

TDA1185A features: (1)Supply Power Obtained from AC Line; (2)Can be used with 220V/50 Hz or 110V/60Hz; (3)Low Count/Cost External Components; (4)Optimum Triac Firing (2nd and 3rd Quadrants); (5)Repetitive Trigger Pulses when Triac Current is Interrupted by Motor Brush Bounce; (6)Triac Current Sensing to Allow Inductive Loads; (7)Programmable Soft-Start; (8)Power Failure Detection and General Circuit Reset; (9)Low Power Consumption: 6.0mA.
