Product Summary

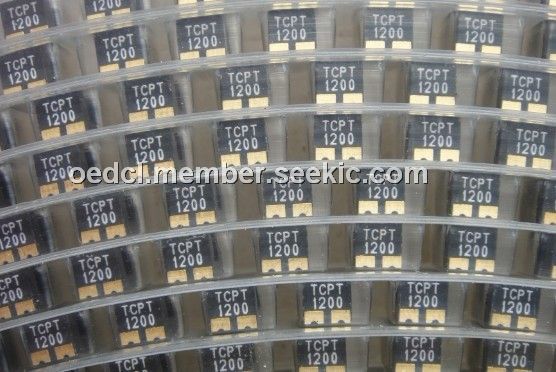

The TCPT1200 is a Subminiature Transmissive Optical Sensor with Phototransistor Output. It has a compact construction where the emitting light source and the detector is located face to face on the same optical axes. The operating wavelength is 950 nm. The applications of the TCPT1200 include: (1)Accurate position sensor for encoder; (2)Detection for motion direction; (3)Suitable for computer mouse and track-balls.
Parametrics
TCPT1200 absolute maximum ratings: (1)Reverse voltage VR: 5 V; (2)Forward current IF: 25 mA; (3)Pulse forward current IFP: 100 mA; (4)Power dissipation PV: 75 mW; (5)Collector emitter voltage VCEO: 70 V; (6)Emitter collector voltage VECO: 7 V; (7)Collector current IC: 20 mA; (8)Ambient temperature range Tamb: –40 to +85 ℃; (9)Storage temperature range Tstg: –40 to +100 ℃; (10)Soldering temperature Tsd: 230 ℃.
Features
TCPT1200 features: (1)Gap 2 mm; (2)Package height: 4 mm; (3)Parts shipped taped and reeled 2000 pcs/ reel; (4)Soldering method according to CECC00802 table 1, class B or C; (5)Surface Mountable Technology (SMD).

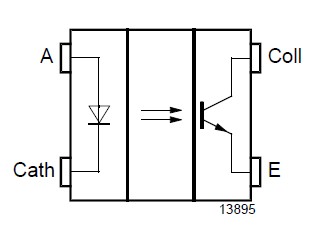

Diagrams
