Product Summary

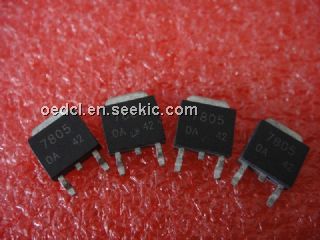

The ta7805f is a three terminal positive voltage regulator.

Parametrics

ta7805f absolute maximum ratings: (1) input voltage: 35V; (2) Power dissipation PD: 1W (ta=25°C) , 10W (Tc=25°C) ; (3) Operating temperature Topr: -30 to 85°C; (4) Storage temperature Tstg: -55 to 150°C; (5) Junction temperature Tj: 150°C; (6) Thermal resistance: 12.5°C/W.

Features

ta7805f features: (1) Suitable for CMOS, TTL, the power supply of the digital ICs; (2) Internal thermal overload protection; (3) Internal short circuit current limiting; (4) Maximum output current of 1A; (5) Packaged in POWER MOLD.

Diagrams

ta7805f pin assignment

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TA7805F(TE16L1,NQ)
TA7805F(TE16L1,NQ)
Toshiba
Low Dropout (LDO) Regulators 1A New PW-Mold
Data Sheet
0-1: $0.39
1-10: $0.33
10-100: $0.31
100-500: $0.27
TA7805F(TE16L,Q)
TA7805F(TE16L,Q)
Toshiba
Low Dropout (LDO) Regulators VReg OC Drooping TS In=20V Out=5V
Data Sheet
Negotiable
