Product Summary

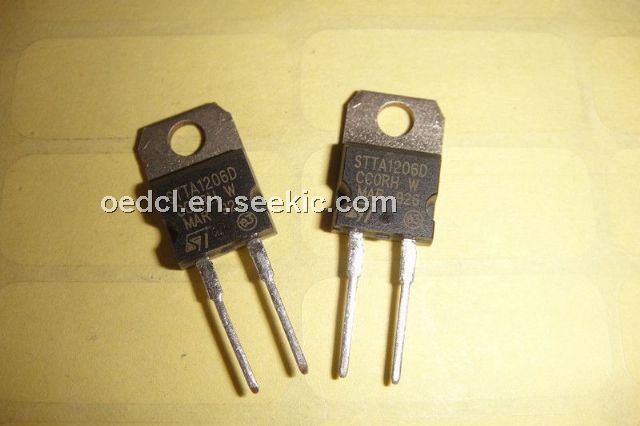

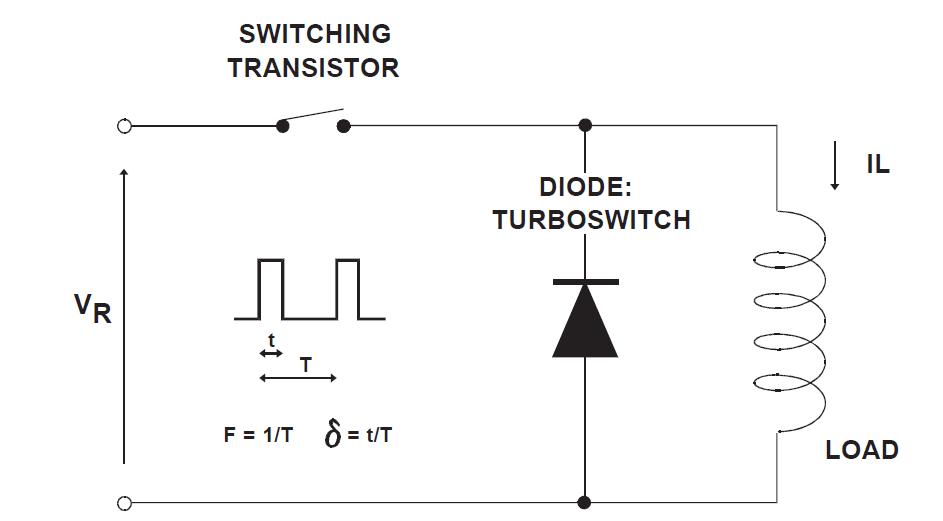

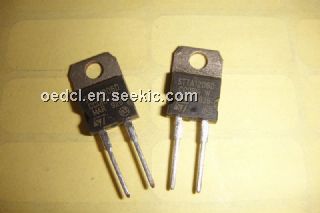

The STTA1206D is a turboswitch ultra-fast high voltage diode. TURBOSWITCH, family, drastically cuts losses in both the diode and the associated switching IGBT or MOSFET in all “freewheel mode” operations and is particularly suitable and efficient in motor control freewheel applications and in booster diode applications in power factor control circuitries. Packaged in TO-220AC, isolated TO-220AC and D2PAK, these 600V devices are particularly.
Parametrics
STTA1206D absolute maximum ratings: (1)VRRM, Repetitive peak reverse voltage: 600 V; (2)VRSM, Non repetitive peak reverse voltage: 600 V; (3)IF(RMS), RMS forward current TO-220AC/D2PAK: 30A; TO-220AC ins.: 20 A; (4)IFRM, Repetitive peak forward current, TO-220AC/D2PAK tp=5ms F=5kHz square: 160 A; TO-220AC ins.: 120 A; (5)IFSM, Surge non repetitive forward current tp=10 ms sinusoidal: 110 A; (6)Tj, Maximum operating junction temperature: 150℃; (7)Tstg, Storage temperature range: -65 to 150℃.
Features
STTA1206D features: (1)Specific to “freewheel mode” operations: freewheel or booster; (2)diode; (3)Ultra-fast and soft recovery; (4)Very low overall power losses in both the diode and the companion transistor; (5)High frequency operations; (6)Insulated package: TO-220AC, Electrical insulation: 2500VRMS, Capacitance < 7 pF.
Diagrams
