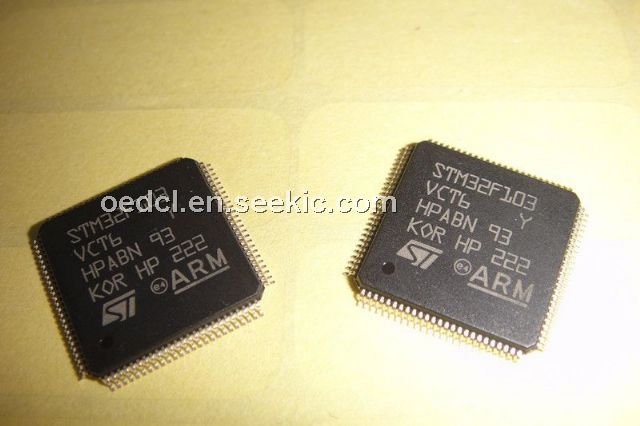

STM32F103VCT6

Product Summary

The STM32F103VCT6 is a High-density performance line ARM. The ARM Cortex-M3 processor is the latest generation of ARM processors for embedded systems. It has been developed to provide a low-cost platform that meets the needs of MCU implementation, with a reduced pin count and low-power consumption, while delivering outstanding computational performance and an advanced system response to interrupts. The STM32F103VCT6 features exceptional code-efficiency, delivering the high-performance expected from an ARM core in the memory size usually associated with 8- and 16-bit devices.

Parametrics

STM32F103VCT6 absolute maximum ratings: (1)VDD–VSS, External main supply voltage (including VDDA and VDD): -0.3 to 4V; (2)VIN, Input voltage on five volt tolerant pin: VSS -0.3 to +5.5V; Input voltage on any pin: VSS -0.3 to VDD +0.3V; (3)|△VDDx|, Variations between different VDD power pins: 50mV; (4)|VSSX-VSS| Variations between all the different ground pins: 50mV; (5)IVDD, Total current into VDD/VDDA power lines (source): 150mA.

Features

STM32F103VCT6 features: (1)Core: ARM 32-bit Cortex.-M3 CPU, 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory; (2)access; Single-cycle multiplication and hardware division; (3)Memories, 256 to 512 Kbytes of Flash memory; up to 64 Kbytes of SRAM; Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories; LCD parallel interface, 8080/6800 modes; (4)Clock, reset and supply management, 2.0 to 3.6 V application supply and I/Os; POR, PDR, and programmable voltage; (5)detector (PVD); 4-to-16 MHz crystal oscillator; Internal 8 MHz factory-trimmed RC; Internal 40 kHz RC with calibration; 32 kHz oscillator for RTC with calibration; (6)Low power, Sleep, Stop and Standby modes; VBAT supply for RTC and backup registers; (7)3 × 12-bit, 1 μs A/D converters (up to 21 channels), Conversion range: 0 to 3.6 V; Triple-sample and hold capability; Temperature sensor; (8)2 × 12-bit D/A converters; (9)DMA: 12-channel DMA controller, Supported peripherals: timers, ADCs, DAC, SDIO, I2Ss, SPIs, I2Cs and USARTs; (10)Debug mode, Serial wire debug (SWD) & JTAG interfaces; Cortex-M3 Embedded Trace Macrocel.

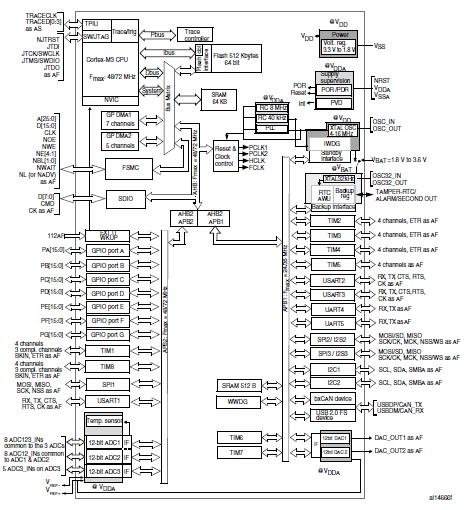

Diagrams
