Product Summary

The ST330C14C0L is a phase control thyristor. The applications of the ST330C14C0L include DC motor controls, Controlled DC power supplies, and AC controllers.

Parametrics

ST330C14C0L absolute maximum ratings: (1)IT(AV): 720A; (2)IT(AV) @ Ths: 55℃; (3)IT(RMS): 1420A; (4)IT(RMS) @ Ths: 25℃; (5)ITSM @ 50Hz: 9000A; @ 60Hz: 9420A; (6)I2t @ 50Hz: 405 KA2s; @ 60Hz: 370 KA2s; (7)VDRM/VRRM: 400 to 1600V; (8)tq typical: 100μs; (9)TJ: - 40 to 125℃.

Features

ST330C14C0L features: (1)Center amplifying gate; (2)Metal case with ceramic insulator; (3)International standard case TO-200AB (E-PUK).

Diagrams

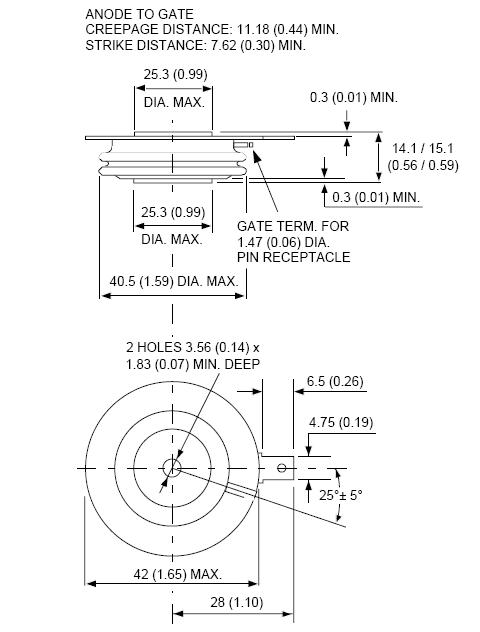

ST330C14C0L dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ST330C14C0L
ST330C14C0L
Vishay Semiconductors
SCR Modules 720 Amp 1400 Volt 1420 Amp IT(RMS)
Data Sheet
0-7: $85.69
7-12: $77.12
12-24: $70.70
24-72: $55.50
