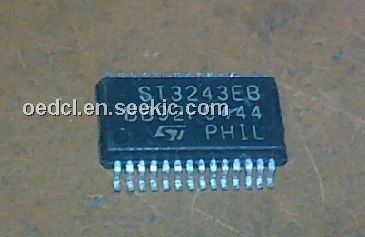

ST3243EB

ST3243EB, Auto-Powerdown Transceiver, -0.3 to 6V, ±15KV, 400Kbps, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.60~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.00 / Piece
20 ~ 100 :	1.60 / Piece

PartNumber:: ST3243EB

Brand:: STMicroelectronics - ST | Pack: TSSOP | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-24

From Other Seller

Part Number:ST3243EB
US $1.60 - 2.00
Quantity:

piece

Product Summary

The ST3243EB is a Transceiver with Auto-Powerdown. It consists of 3 drivers, 5 receivers and a dual charge-pump circuit. The ST3243EB device meets the requirements of EIA/TIA and V.28/V.24 comunication standards providing high data rate capability and enhanced electrostatic discharge (ESD) protection. All transmitter outputs and receiver input are protected to ±8KV USING IEC 1000-4-2 contact discharge and ±15KV using the Human Body Model. The receiver R2 is always active to implement a wake-up feature for serial port.

Parametrics

ST3243EB absolute maximum ratings: (1)Supply Voltage: -0.3 to 6V; (2)Doubled Voltage Terminal: (VCC -0.3) to 7V; (3)Inverted Voltage Terminal: 0.3 to -7V; (4)Input Voltage: -0.3 to 6V; (5)Receiver Input Voltage Range: ± 25V; (6)Transmitter Output Voltage Range: ± 13.2V; (7)Receiver Output Voltage Range: -0.3 to (VCC + 0.3)V; (8)Storage Temperature Range: -65 to 150℃.

Features

ST3243EB features: (1)ESD protection for RS-232 I/O pins: ±8KV IEC 1000-4-2 contact discharge, ±15KV human body model; (2)1μA supply current achieved when in auto-powerdown; (3)250Kbps minimum guaranteed data rate; (4)Guaranteed 6V/μs slew rate range; (5)Guaranteed mouse driveability; (6)0.1μF external capacitors; (7)meet eia/tia-232 specifications down to 3V; (8)Available in SO-28, SSOP-28, TSSOP28 and FLIP-CHIP28 packages.
