Product Summary

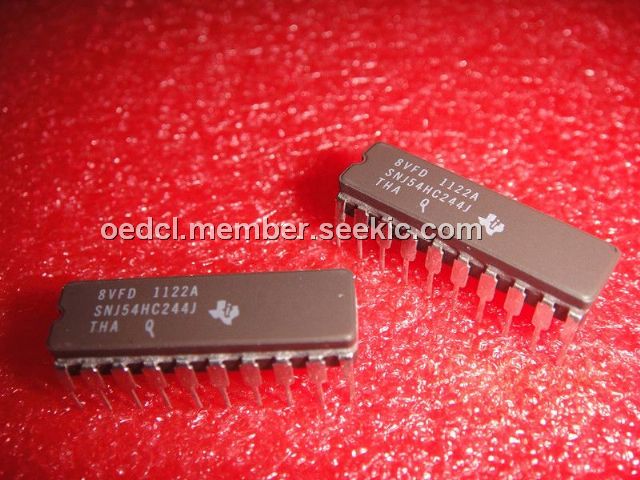

The SNJ54HC244J is an Octal buffer and line driver with 3-state outputs. The SNJ54HC244J is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The SNJ54HC244J is organized as two 4-bit buffers/drivers with separate output-enable (OE) inputs.
Parametrics
SNJ54HC244J absolut maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA; (6)Storage temperature range, Tstg: –65℃ to 150℃.
Features
SNJ54HC244J features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)High-Current Outputs Drive Up To 15 LSTTL Loads; (3)3-State Outputs Drive Bus Line or Buffer Memory Address Register; (4)Low Power Consumption, 80-μA Max ICC; (5)Typical tpd = 11 ns; (6)±6-mA Output Drive at 5 V; (7)Low Input Current of 1 μA Max.

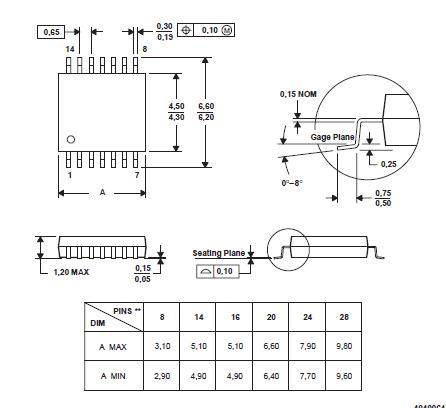

Diagrams
 |
