Product Summary

The SN74HC08N is a quadruple 2-input positive-and gate. The device contains four independent 2-input AND gates.

Parametrics

SN74HC08N absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: 86℃/W; (7)Storage temperature range, Tstg: –65 to 150℃.

Features

SN74HC08N features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 20-μA Max ICC; (4)Typical tpd = 8 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max.

Diagrams

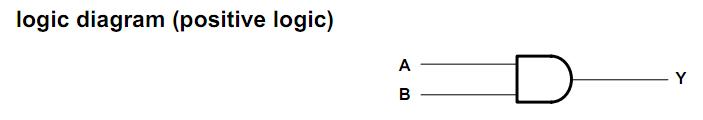

SN74HC08N logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74HC08N
SN74HC08N
Texas Instruments
Gates (AND / NAND / OR / NOR) Quad 2-Input.
Data Sheet
0-1: $0.22
1-25: $0.17
25-100: $0.12
100-250: $0.11
SN74HC08NE4
SN74HC08NE4
Texas Instruments
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-AND Gates
Data Sheet
0-1: $0.26
1-25: $0.22
25-100: $0.17
100-250: $0.10
SN74HC08NSR
SN74HC08NSR
Texas Instruments
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-AND Gates
Data Sheet
0-1: $0.24
1-25: $0.16
25-100: $0.13
100-250: $0.11
SN74HC08NSRE4
SN74HC08NSRE4
Texas Instruments
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-AND Gates
Data Sheet
0-1: $0.25
1-25: $0.18
25-100: $0.15
100-250: $0.10
SN74HC08NSRG4
SN74HC08NSRG4
Texas Instruments
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-AND Gates
Data Sheet
0-1: $0.18
1-25: $0.14
25-100: $0.12
100-250: $0.10
