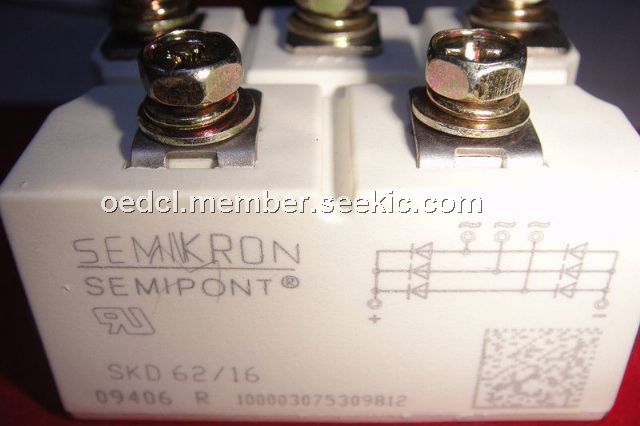

The SKD62/16 is a power bridge rectifier. Typical applications of the SKD62/16 are three phase rectifiers for power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplies, battery charger rectifiers.
Parametrics
SKD62/16 absolute maximum ratings: (1)ID -I o II CO cn O resistive / inductive load: 86A; (2)ID Ta = 45 ℃; isolated: 10,5A; (3)ID Ta = 45 ℃; chassis: 24A; (4)ID Ta = 45 ℃; P1A/120 (P 1A/200): 46 (53)A; (5) Ifsm Tvj = 25 ℃; 10 ms500A; Tvj = 150 ℃; 10 ms: 425A; (6)i2t TVj = 25 ℃; 8,3 : 10 ms ms: 1250A2s; TVj = 150 ℃; 8,3 : 10 ms ms: 900 A2s; (7)vF Tvj = 25 ℃; lF = 150 Amax. : 1,8v; (8)V(TO) Tvj = 150 ℃max. : 0,85V; (9)rT Tvj = 150 ℃max. : 8mil; (10)Ird TVj = 25 ℃; VDD = VDRM; VRD = VRRMmax. 0,5mA; Tvj = 150 ℃; vRD = vRRM: 5mA; (11) Rth(j-c) per diode 1,5 K/W total : 0,25K/W; (12)Rth(c-s): 0,07 K/W; (13)Tvi: -40 to + 150℃; (14)Tstg: -40 to + 125℃; (15) Visol a. c. 50 Hz; r.m.s.; 1 si 1 min.: 3600 (3000 )V.
Features
SKD62/16 features: (1)Robust plastic case with screw terminals; (2)Large, isolated base plate; (3)Blocking voltage up to 1800 V; (4)High surge currents; (5)Three phase bridge rectifier; (6)Easy chassis mounting; (7)UL recognized, file noE 63 532.
