Product Summary

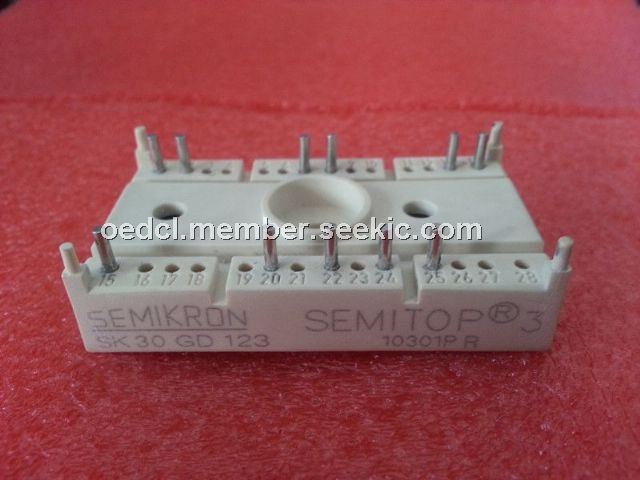

The SK30GD123 is an IGBT Module.
Parametrics
SK30GD123 absolute maximum ratings: (1)VCES Tj = 25℃: 1200 V; (2)IC Tj = 125℃ Ts = 25℃: 33 A; (3)ICRM: 50 A; (4)VGES: ± 20 V; (5)tpsc: 10 μs; (6)Tvj: -40℃ to +150℃; (7)Tstg: -40℃ to +125℃.
Features
SK30GD123 features: (1)Compact design; (2)One csrew mounting; (3)Heat transfer and isolation through direct copper bonded aluminium oxide ceramic; (4)N- channel homogeneous silicon structure (NPT- Nonpunch- through IGBT); (5)High short circuit capability; (6)Low tail current with low temperature dependence; (7)UL recognized, file NO.E63532.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SK30GD123 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SK300MB075 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SK30GAL123 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SK30GB067 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SK30GD123 |
Other |
|
Data Sheet |
Negotiable |
|
||||
